PRODUCT CATALOGUE

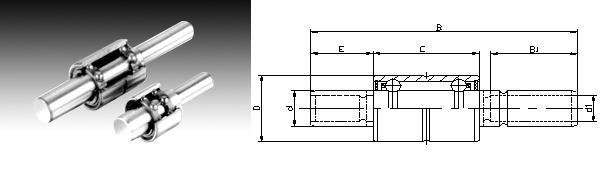

Ball-Ball Series 12-12.7X24
 |
|||||||||||||||
| Ball-Ball Series 12-12.7*24/Ball-Ball Series .4724"-.5014"*.9449" | |||||||||||||||
| NO | Bearing No | Dimensions (mm) | Reference No | Mass (Kg) | |||||||||||
| D | C | d | B | E | d1 | B1 | NSK | FAG | RHP | SKF | KOYO | Customer No | |||
| 1 | WPB1224052 | 24 | 33.4 | 12.738 | 51.73 | 4.47 | 417039A | 0.090 | |||||||
| 2 | WPB1224064 | 24 | 33.4 | 12.738 | 64.01 | 3.45 | 412618C | 0.095 | |||||||
| 3 | WPB1224065 | 24 | 33.4 | 12.038 | 65.41 | 16.00 | 395837 | 0.100 | |||||||
| 4 | WPB1224078 | 24 | 27.0 | 12.000 | 78.00 | 13.50 | WS2307 | 0.110 | |||||||
| 5 | WPB1224079 | 24 | 33.4 | 12.038 | 78.83 | 17.00 | 395671B | 0.120 | |||||||
| 6 | WPB1224080 | 24 | 33.4 | 12.738 | 80.00 | 14.20 | WS2315-1 | 416787C | 0.130 | ||||||
| 7 | WPB1224083 | 24 | 33.4 | 12.038 | 82.73 | 16.00 | 395835 | 0.125 | |||||||
| 8 | WPB1224083-1 | 24 | 25.0 | 12.000 | 83.00 | 37.00 | F109 | 0.120 | |||||||
| 9 | WPB1224084 | 24 | 33.4 | 12.738 | 83.57 | 16.39 | 412619AA | 0.130 | |||||||
| 10 | WPB1224084-1 | 24 | 33.4 | 12.038 | 83.90 | 22.20 | 395726 | 0.125 | |||||||
| 11 | WPB1224085 | 24 | 27.0 | 12.038 | 84.51 | 20.50 | 664101 | 0.125 | |||||||
| 12 | WPB1224088 | 24 | 33.4 | 12.738 | 87.63 | 16.39 | 414044C | 0.135 | |||||||
| 13 | WPB1224100 | 24 | 33.4 | 12.738 | 99.60 | 23.94 | 416402A | 0.140 | |||||||
| 14 | WPB1224101 | 24 | 33.4 | 12.738 | 100.96 | 25.16 | 415329A | 0.140 | |||||||
| 15 | WPB1224107 | 24 | 33.4 | 12.738 | 107.15 | 31.50 | 413970A | 0.150 | |||||||
