PRODUCT CATALOGUE

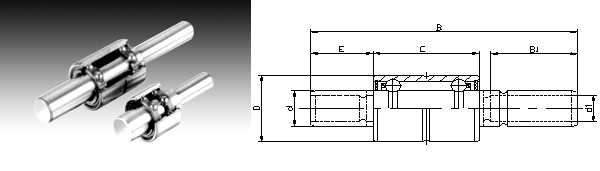

Ball-Ball Series 17.5-18X35
 |
|||||||||||||||
| Ball-Ball Series 17.5-18X35/Ball-Ball Series .689"-.7087"X1.378" | |||||||||||||||
| NO | Bearing No | Dimensions (mm) | Reference No |
Mass (Kg) |
|||||||||||
| D | C | d | B | E | d1 | B1 | NSK | FAG | RHP | SKF | KOYO | Customer No | |||
| 1 | WPB1835079 | 35 | 30.0 | 17.5 | 79.0 | 12.0 | 12.000 | 32.0 | BWF35-22aR4 | 0.270 | |||||
| 2 | WPB1835086 | 35 | 30.0 | 17.5 | 85.5 | 15.5 | 12.000 | 36.0 | BWF35-21aR4 | 0.280 | |||||
| 3 | WPB1835088 | 35 | 30.0 | 17.5 | 88.0 | 16.0 | 12.000 | 39.5 | BWF35-28XaR4 | 0.290 | |||||
| 4 | WPB1835091 | 35 | 38.9 | 17.5 | 91.0 | 15.0 | 12.000 | 34.5 | BWF35-32XaR411 | 0.300 | |||||
| 5 | WPB1835096 | 35 | 30.0 | 17.5 | 96.2 | 13.6 | 12.000 | 50.2 | BWF35-35XR4 | 0.360 | |||||
| 6 | WPB1835112 | 35 | 46.0 | 18.0 | 112.0 | 26.5 | 13.000 | 35.0 | BWF35-14R | 0.370 | |||||
| 7 | WPB1835119 | 35 | 46.0 | 18.0 | 119.0 | 26.5 | 13.000 | 42.0 | BWF35-3BR | 0.480 | |||||
| 8 | WPB1835122 | 35 | 38.9 | 18.0 | 122.4 | 33.5 | 15.918 | 47.6 | BWF35-5R | 0.400 | |||||
