PRODUCT CATALOGUE

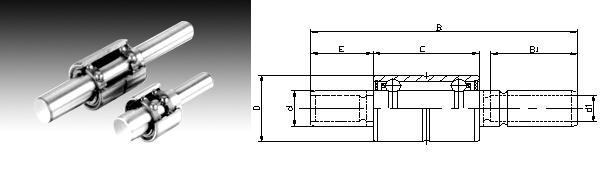

Ball-Ball Series 19X40
 |
|||||||||||||||
| Ball-Ball Series 19X40/Ball-Ball Series .748"X1.5748" | |||||||||||||||
| NO | Bearing No | Dimensions (mm) | Reference No |
Mass (Kg) |
|||||||||||
| D | C | d | B | E | d1 | B1 | NSK | FAG | RHP | SKF | KOYO | Customer No | |||
| 1 | WPB1940067 | 40 | 46.00 | 19.000 | 66.80 | 17.80 | BWF40-64aR | 0.340 | |||||||
| 2 | WPB1940104 | 40 | 46.00 | 19.000 | 103.85 | 22.30 | 12.000 | 33.55 | BWF40-49aR | 0.350 | |||||
| 3 | WPB1940105 | 40 | 46.00 | 19.000 | 105.40 | 20.50 | 12.000 | 36.90 | BWF40-43XR | 0.350 | |||||
| 4 | WPB1940106 | 40 | 38.90 | 15.918 | 105.82 | 25.88 | 885498 | 0.350 | |||||||
| 5 | WPB1940106-1 | 40 | 38.90 | 15.918 | 105.92 | 4.04 | 885106 | 0.350 | |||||||
| 6 | WPB1940108 | 40 | 46.00 | 19.000 | 108.00 | 18.00 | 12.000 | 42.00 | BWF40-22R | 0.360 | |||||
| 7 | WPB1940111 | 40 | 46.00 | 19.000 | 110.20 | 22.60 | 12.000 | 39.90 | BWF40-25R | 0.400 | |||||
| 8 | WPB1940111-1 | 40 | 46.00 | 19.000 | 110.95 | 28.90 | 12.000 | 34.05 | BWF40-42aR | 0.400 | |||||
| 9 | WPB1940111-2 | 40 | 46.00 | 19.000 | 111.00 | 24.30 | 12.000 | 38.70 | BWF40-19R | 0.415 | |||||
| 10 | WPB1940111-3 | 40 | 46.00 | 19.000 | 111.45 | 28.90 | 12.000 | 34.55 | BWF40-52aR | 0.415 | |||||
| 11 | WPB1940112 | 40 | 46.00 | 19.000 | 112.00 | 28.50 | 13.000 | 35.00 | BWF40-37R | 0.415 | |||||
| 12 | WPB1940115 | 40 | 46.00 | 19.000 | 114.50 | 28.00 | 12.000 | 35.50 | BWF40-41R | 0.419 | |||||
| 13 | WPB1940116 | 40 | 46.00 | 19.000 | 115.50 | 26.50 | 13.000 | 38.50 | BWF40-34R | 0.419 | |||||
| 14 | WPB1940116-1 | 40 | 46.00 | 19.000 | 116.45 | 33.90 | 12.000 | 34.55 | BWF40-55aR | 0.419 | |||||
| 15 | WPB1940117 | 40 | 46.00 | 19.000 | 116.85 | 30.35 | 12.000 | 35.50 | BWF40-47R | 0.420 | |||||
| 16 | WPB1940119 | 40 | 46.00 | 19.000 | 118.50 | 25.00 | 12.000 | 45.50 | BWF40-26R | 0.420 | |||||
| 17 | WPB1940119-1 | 40 | 46.00 | 19.000 | 118.50 | 31.80 | 12.000 | 38.70 | BWF40-38R | 0.420 | |||||
| 18 | WPB1940119-2 | 40 | 46.00 | 19.000 | 119.00 | 26.50 | 13.000 | 42.00 | BWF40-17R | 0.430 | |||||
| 19 | WPB1940120 | 40 | 46.00 | 19.000 | 120.45 | 37.90 | 12.000 | 34.55 | BWF40-56aR | 0.430 | |||||
| 20 | WPB1940123 | 40 | 46.00 | 19.000 | 123.10 | 33.30 | 13.000 | 39.30 | BWF40-40R | 0.430 | |||||
| 21 | WPB1940126 | 40 | 46.00 | 19.000 | 125.80 | 33.30 | 13.000 | 42.00 | BWF40-28R | 0.430 | |||||
| 22 | WPB1940126-1 | 40 | 46.00 | 19.000 | 126.35 | 30.35 | 12.000 | 45.00 | BWF40-6DR | 0.430 | |||||
| 23 | WPB1940130 | 40 | 46.00 | 19.000 | 129.80 | 29.80 | 12.000 | 49.00 | BWF40-57R | 0.440 | |||||
| 24 | WPB1940156 | 40 | 68.78 | 18.961 | 156.08 | 31.14 | 15.918 | 39.90 | 414294B | 0.570 | |||||
| 25 | WPB2040135 | 40 | 62.00 | 20.000 | 135.20 | 25.00 | 15.000 | 41.00 | 395713 | 0.460 | |||||
| 26 | WPB2240154 | 40 | 68.78 | 22.530 | 154.38 | 28.20 | 15.918 | 42.93 | 416541C | 0.563 | |||||
