PRODUCT CATALOGUE

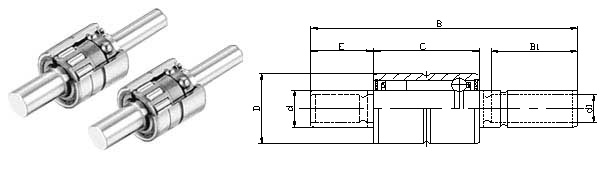

Ball-Roller 20X36 20X38.1 25.4X47.625
 |
||||||||||||||||
| Ball-Roller 20X36 20X38.1 25.4X47.625/Ball-Roller Series .7484"X1.4173" .7484"X1.5" 1"X1.875"" | ||||||||||||||||
| NO | Bearing No | Dimensions (mm) | Reference No |
Mass (Kg) |
||||||||||||
| D | C | d | B | E | d1 | B1 | NSK | FAG | RHP | SKF | KOYO | Customer No | ||||
| 1 | WPR2036126 | 36 | 52 | 20 | 125.5 | 25.25 | 15.002 | 44.5 | PAR5049 | 0.34 | ||||||
| 2 | WPR2036131 | 36 | 52 | 20 | 130.5 | 33 | 12.055 | 41 | PAR5059 | 0.35 | ||||||
| 3 | WPR2038073 | 38.1 | 4.01 | 20 | 73.1 | 26.1 | PAR5056 | 0.38 | ||||||||
| 4 | WPR2038128 | 38.1 | 54 | 20 | 127.5 | 27.93 | 15.918 | 42.92 | PAR5066 | 0.4 | ||||||
| 5 | WPR2038128-1 | 38.1 | 54 | 20 | 127.5 | 24.5 | 15.918 | 42.7 | PAR5067 | 0.4 | ||||||
| 6 | WPR2038135 | 38.1 | 54 | 20 | 134.6 | 31.6 | 15.918 | 42.7 | PAR5068 | 0.41 | ||||||
| 7 | WPR2548136 | 47.6 | 54 | 25.4 | 136.14 | 23.49 | 15.918 | 53.62 | 665951 | 0.88 | ||||||
| 8 | WPR2548161 | 47.6 | 69.9 | 25.4 | 160.78 | 39.52 | 15.918 | 46.36 | 665937A | 0.95 | ||||||
| 9 | WPR2548178 | 47.6 | 69.9 | 25.4 | 177.8 | 57.15 | 15.918 | 48.26 | 665913 | 1.1 | ||||||
