PRODUCT CATALOGUE
LZ2820 (UWL2820) Bottom Roller Bearing
LZ2820（UWL2820）Bottom Roller Bearing for Textile Machinery
LZ2820（UWL2820）Textile Spinning BearingSize: 16.5x28x22mm
Inner Diameter (d): 16.5mm
Outer Diameter (D): 28mm
Thickness (C): 22mm
  |
|||||||||||

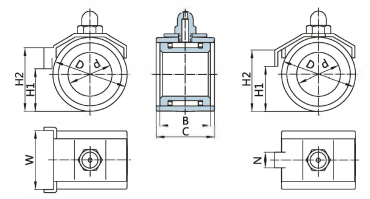

| Bearing Number | Dimensions (mm) |
Weight (kg) |
Load Carrying Capacity |
||||||||
| GB | ISO | D | d | B | C | H1 | H2 | W | N | ||
| -0.05 | -0.01 | ±0.025 | min | max | 0.4 | -0.2 | |||||
| LZ2820 | UWL2820 | 28 | 16.5 | 19 | 22 | 16 | 24 | 20.2 | — | 0.06 | 6 |
