SRF40SS Yoke Type Track Rollers_Parts Service Supply Co., Ltd

SRF40SS Bearing
SRF40SS Track Rollers
SRF40SS Yoke Type Track Rollers

Size: 1x2x0.995 inch

Inner Diameter: 1 inch
Outer Diameter: 2 inch
Thickness / Width: 0.995 inch

SRF40SS Yoke Type Track Rollers are accommodate high radial loads, accommodate tilting moments, long service life, relatively high speed capability.

Applications:
1. Metals
2. Mining, mineral processing and cement
3. Railways
4. Material handling
5. Agriculture
6. Construction
7. Cam gears
8. Bed ways
9. Conveying equipment
10. Linear guidance systems

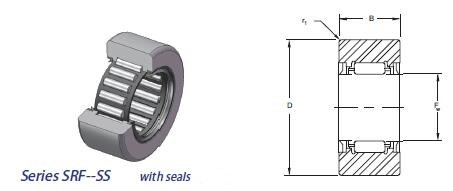

Bearing Number	Boundary dimensions (inch)						Weight (lbs)	Matching Inner Rings
Bearing Number	Roller D Max	Roller D Min	Roller B	Inside Dia. Nominal	Inside Dia. Min	Inside Dia. Max	Weight (lbs)	Matching Inner Rings
SRF40SS	2	1.999	0.995	1	1.0009	1.0018	0.560	IR7194, IR7194C

1. All dimensions are in inches.
2. Normal operating loads should not exceed the bearing dynamic capacity.
3. Roller followers used without inner rings require a shaft with minimum hardness of RC58.
4. Standard configuration of roller follower series SRF--SS is with seal lips facing outward. To specify roller followers with seal lips facing inward, replace suffix-SS with suffix-RR. (Example: SRF30RR).
