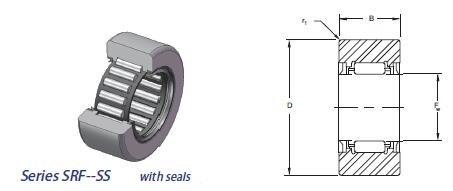

SRF45SS Bearing SRF45SS Track Rollers SRF45SS Yoke Type Track Rollers
Size: 1 1/4x2.25x0.995 inch
Inner Diameter: 1 1/4 inch Outer Diameter: 2.25 inch Thickness / Width: 0.995 inch
SRF45SSYoke Type Track Rollers are accommodate high radial loads, accommodate tilting moments, long service life, relatively high speed capability.
Applications: 1. Metals
2. Mining, mineral processing and cement
3. Railways
4. Material handling
5. Agriculture
6. Construction
7. Cam gears
8. Bed ways
9. Conveying equipment
10. Linear guidance systems
Bearing Number
Boundary dimensions (inch)
Weight (lbs)
Matching Inner Rings
Roller D Max
Roller D Min
Roller B
Inside Dia. Nominal
Inside Dia. Min
Inside Dia. Max
SRF45SS
2.25
2.249
0.995
1 1/4
1.2510
1.2519
0.580
IR7234
1. All dimensions are in inches.
2. Normal operating loads should not exceed the bearing dynamic capacity.
3. Roller followers used without inner rings require a shaft with minimum hardness of RC58.
4. Standard configuration of roller follower series SRF--SS is with seal lips facing outward. To specify roller followers with seal lips facing inward, replace suffix-SS with suffix-RR. (Example: SRF30RR).
