GEH300XF/Q Spherical Plain Bearing
GEH300XF/Q BearingGEH300XF/Q Spherical Plain Bearing
GEH300XF/Q Radial Spherical Plain Bearing

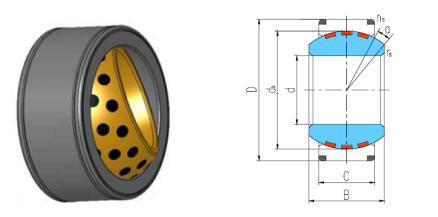

Size: 300x430x212x200mm
Ball Bore Diameter: 300mm
Outside Diameter: 430mm
Ball Width: 212mm
Race Width: 200mm
GEH300XF/Q Bearings are wear-resistance, anti-corrosion and self-aligning, suitable for heavy radial loads and any direction with lower axial loads mechanism. Can be re-lubricated via the grooves and lubrication holes of both inner race and outer race.
Applications:
1. Agriculture
2. Railway Engineering
3. Railway Station Construction
4. Forklift Truck
5. Material Handling
6. Bridge Building
7. Construction Machinery
8. Hydraulic Steel Structures
9. Power Generation
10. Oil Field Exploration
11. Mining and Aggregate Processing
12. Wind Energy
13. Gear Drives
14. Rolling Mills
15. Trucks
