GACZ82S Spherical Plain Bearing
GACZ82S BearingGACZ82S Spherical Plain Bearing

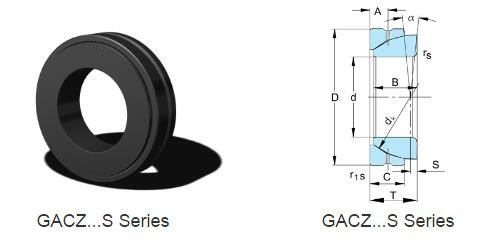

GACZ82S Angular Contact Spherical Plain Bearing
Size: 82.55x130.175x51.56mm
Ball Bore Diameter (d): 82.55mm
Outside Diameter (D): 130.175mm
Ball Width (B): 47.24mm
Race Width (C): 39.24mm
Width (T): 51.56mm
GACZ82S Bearings are wear-resistance, anti-corrosion and self-aligning, suitable for heavy radial loads and any direction with lower axial loads mechanism. Can be re-lubricated via the grooves and lubrication holes of both inner race and outer race.
Applications:
1. Agriculture
2. Railway Engineering
3. Railway Station Construction
4. Forklift Truck
5. Material Handling
6. Bridge Building
7. Construction Machinery
8. Hydraulic Steel Structures
9. Power Generation
10. Oil Field Exploration
11. Mining and Aggregate Processing
12. Wind Energy
13. Gear Drives
14. Rolling Mills
15. Trucks
