GIHR-K20-DO Rod End
GIHR-K20-DO Rod EndGIHR-K20-DO Hydraulic Rod End
Size:20x56x80mm
Bore Diameter Bearing (d): 20mm
Outer Eye Diameter (d2): 56mm
Total Length Internal Thread Head (L4):80mm
GIHR-K20-DO Rod End for hydraulic components, maintenance required. Rod body with right or left hand female thread. It is made up of a radial spherical plain bearing GE..ES or GE...ES-2RS and rod end housing. With locking slot and nuts. Rod end housing with a lubricating hole or grease nipple.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GIHL-K20-DO.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
 |
||||||||||||||||

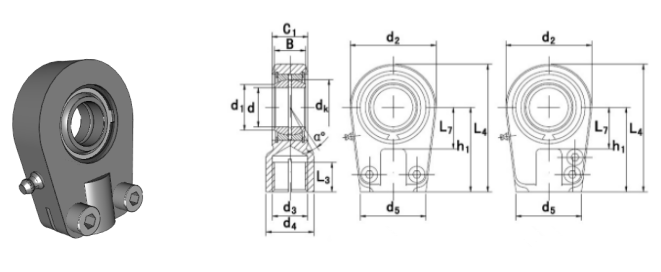

| Bearing Number | Boundary dimensions (mm) | Weight (kg) | ||||||||||||||
| d | B | dk | C1 | d2 |
G 6H |
h1 | L3 min | L4 max | d4 | d5 | d1 | b | rs min |
a° ≈ |
||
| GIHR-K20-DO | 20 | 16 | 29 | 19 | 56 | M16X1.5 | 50 | 17 | 80 | 25 | 46 | 24.1 | 17 | 0.3 | 9 | 0.37 |
