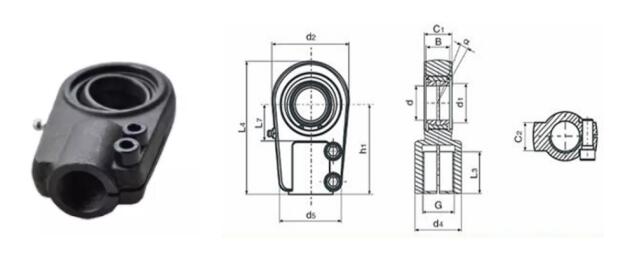

GAS50 Rod End
GAS50 Rod EndGAS50 Hydraulic Rod End
Size: 50x116x198mm
Bore Diameter Bearing (d): 50mm
Outer Eye Diameter (d2): 116mm
Total Length Internal Thread Head (L4): 198mm
GAS50 Rod End for hydraulic components. Rod end with locking slot is made up of a rod end and a radial spherical plain bearing of series GE...ES, fixed in housing by snap rings, rod end of carbon steel or spheroidal graphite cast iron. Thread can be closed because shank is slotted, thread clamping by two hexagon socket screws; Can be lubricated via a nipple. It has characteristics of large load capability, easy mounting and dismounting.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GASL50.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
