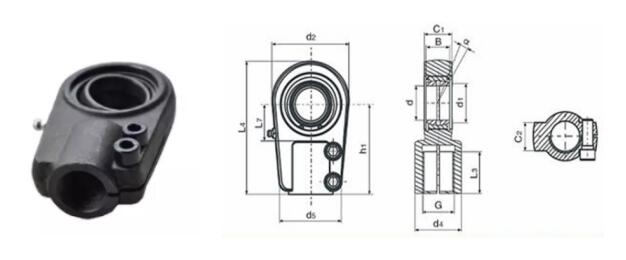

GAS60 Rod End
GAS60 Rod EndGAS60 Hydraulic Rod End
Size: 60x130x240mm
Bore Diameter Bearing (d): 60mm
Outer Eye Diameter (d2): 130mm
Total Length Internal Thread Head (L4): 240mm
GAS60 Rod End for hydraulic components. Rod end with locking slot is made up of a rod end and a radial spherical plain bearing of series GE...ES, fixed in housing by snap rings, rod end of carbon steel or spheroidal graphite cast iron. Thread can be closed because shank is slotted, thread clamping by two hexagon socket screws; Can be lubricated via a nipple. It has characteristics of large load capability, easy mounting and dismounting.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GASL60.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
