GAS110 Rod End
GAS110 Rod EndGAS110 Hydraulic Rod End

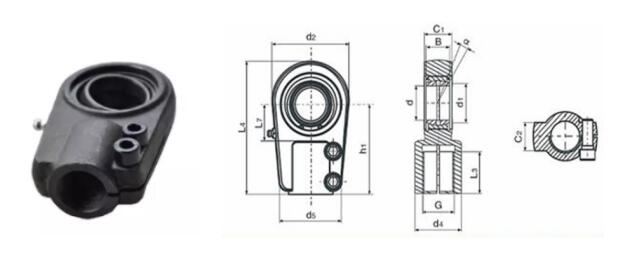

Size: 110x264x442mm
Bore Diameter Bearing (d): 110mm
Outer Eye Diameter (d2): 264mm
Total Length Internal Thread Head (L4): 442mm
GAS110 Rod End for hydraulic components. Rod end with locking slot is made up of a rod end and a radial spherical plain bearing of series GE...ES, fixed in housing by snap rings, rod end of carbon steel or spheroidal graphite cast iron. Thread can be closed because shank is slotted, thread clamping by two hexagon socket screws; Can be lubricated via a nipple. It has characteristics of large load capability, easy mounting and dismounting.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GASL110.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
