GAS140 Rod End
GAS140 Rod EndGAS140 Hydraulic Rod End

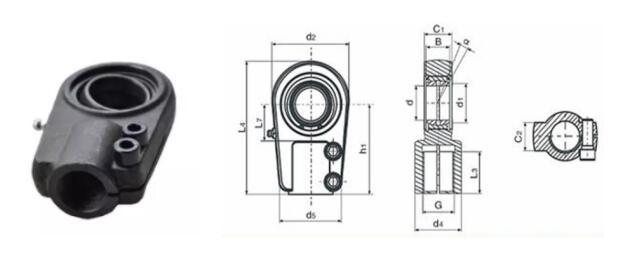

Size: 140x380x620mm
Bore Diameter Bearing (d): 140mm
Outer Eye Diameter (d2): 380mm
Total Length Internal Thread Head (L4): 620mm
GAS140 Rod End for hydraulic components. Rod end with locking slot is made up of a rod end and a radial spherical plain bearing of series GE...ES, fixed in housing by snap rings, rod end of carbon steel or spheroidal graphite cast iron. Thread can be closed because shank is slotted, thread clamping by two hexagon socket screws; Can be lubricated via a nipple. It has characteristics of large load capability, easy mounting and dismounting.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GASL140.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
