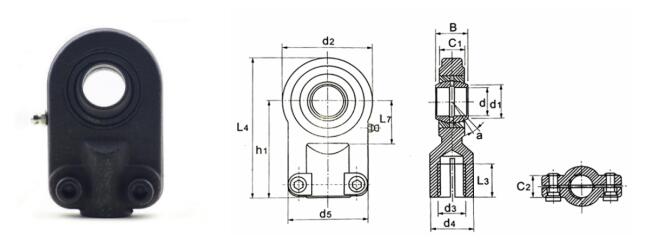

GIHO-K20-DO Rod End
GIHO-K20-DO Rod EndGIHO-K20-DO Hydraulic Rod End
Size: 20x55x85.5mm
Bore Diameter Bearing (d): 20mm
Outer Eye Diameter (d2): 55mm
Total Length Internal Thread Head (L4): 85.5mm
GIHO-K20-DO Rod End for hydraulic components. Rod body with right or left hand female thread. It is made up of a radial spherical plain bearing GE..ES or GE..ES-2RS and rod end housing. With locking slot and nuts. Rod end housing with a lubricating hole or grease nipple. It has characteristics of large load capability, easy mounting and dismounting.
For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. GIHO-KL20-DO.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
