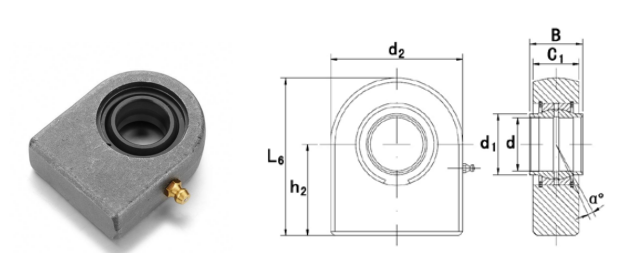

GF110-LO Rod End
GF110-LO Rod EndGF110-LO Hydraulic Rod End
Size: 110x295x332.5mm
Bore Diameter Bearing (d): 110mm
Outer Eye Diameter (d2): 295mm
Total Length Welding Head (L6): 332.5mm
GF110-LO Rod End for hydraulic components. Rod end with welding shank is made up of a rod end and a radial spherical plain bearing of series GEEW...ES, fixed in housing by snap rings, rod end of weldable steel and phosphated, with rectangular welding face; can be lubricated via a nipple. It has characteristis of large loading capability, easy mounting and dismounting.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
