GK10-DO Rod End
GK10-DO Rod EndGK10-DO Hydraulic Rod End
Size:10x29x38.5mm
Bore Diameter Bearing (d): 10mm
Outer Eye Diameter (d2): 29mm
Total Length Welding Head (L4): 38.5mm
GK10-DO Rod End for hydraulic components. It is made up of a radial spherical plain bearing GE..E or GE..ES and rod end housing. Fixed in housing by snap rings, rod end with weldable steel and phosphated, with circular welding face, requiring maintenance, sliding contact surface: steel/steel. It has characteristics of large load capability, easy mounting and dismounting.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
 |
|||||||||||||

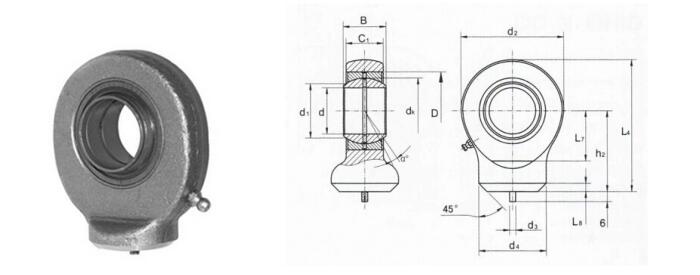

| Bearing Number | Boundary dimensions | Weight (kg) | |||||||||||
| d | B | dk | C1 | d2 | h2 |
L4 max |
d4 | d3 | L8 | rs min |
a° ≈ |
||
| GK10-DO | 10 | 9 | 16 | 7 | 29 | 24 | 38.5 | 15 | 3 | 1.5 | 0.3 | 12 | 0.041 |
