PRODUCT CATALOGUE
TS25-NF Rod End

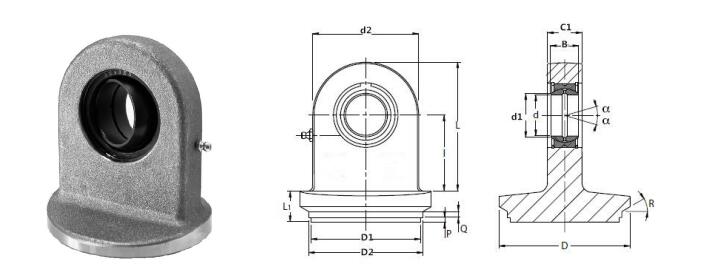

TS25-NF Rod EndTS25-NF Hydraulic Rod End
Size: 25x55x72.5mm
Bore Diameter Bearing (d): 25mm
Outer Eye Diameter (d2): 55mm
Total Length Welding Head (L): 72.5mm
TS25-NF Rod End for hydraulic components. It is made up of a radial spherical plain bearing GE..E or GE..ES and rod end housing, fixed in housing by snap rings, rod end of weldable steel and phosphated. A grease nipple is provided for lubrification. It has characteristics of large loading capability, easy mounting and dismounting.
Applications:
1. Cars
2. Trucks
3. Lawn Tractors
4. Boats
5. Industrial Machines
6. Aircraft Control Systems
