PHS5-1 Rod End
PHS5-1 Rod EndPHS5-1 Female Threaded Rod End

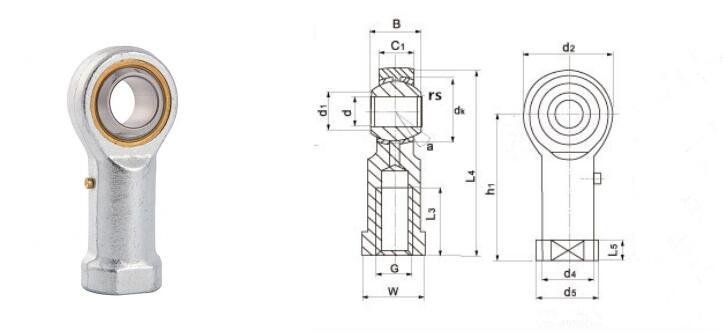

PHS5-1 Heavy Duty Rod End Bearing
Size: 5x16x35mm
Bore Diameter Bearing (d): 5mm
Outer Eye Diameter (d2): 16mm
Total Length Internal Thread Head (L4): 35mm
PHS5-1 Heavy-duty female thread rod ends, sliding surface with bronze liner; inner ring of carbon chromium steel, spherical surface with chromium plating; can be lubricated via a nipple or a hole in the rod end. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. PHSL5-1
Applications:
1. Agricultural Machinery
2. Gardening Machinery
3. Pneumatics and Hydraulics
4. Port Machinery
5. Engineering Machinery
6. Heavy Trucks
7. Food Machinery
8. Etc.
