POS10 Rod End
POS10 Rod EndPOS10 Rod End Bearing

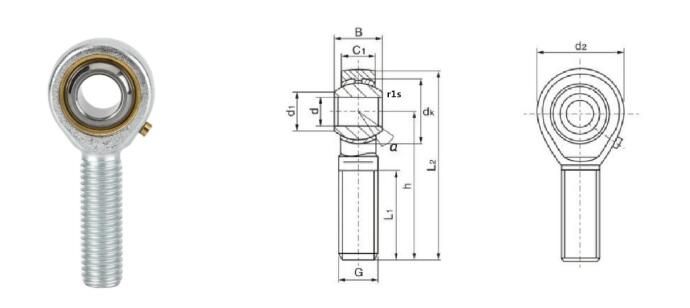

POS10 Male Threaded Rod End
Size: 10x26x61mm
Bore Diameter Bearing (d): 10mm
Outer Eye Diameter (d2): 26mm
Total Length Internal Thread Head (L2): 61mm
POS10 male thread rod end has a sliding contact surface: steel/bronze. Rod end of steel and zinc coated, sliding surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating; can be lubricated via a nipple or a hole in the rod end. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. POSL10
Applications:
1. Agricultural Machinery
2. Gardening Machinery
3. Pneumatics and Hydraulics
4. Port Machinery
5. Engineering Machinery
6. Heavy Trucks
7. Food Machinery
8. Etc.
