SIZP6S Rod End
SIZP6S Rod EndSIZP6S Rod End Bearing

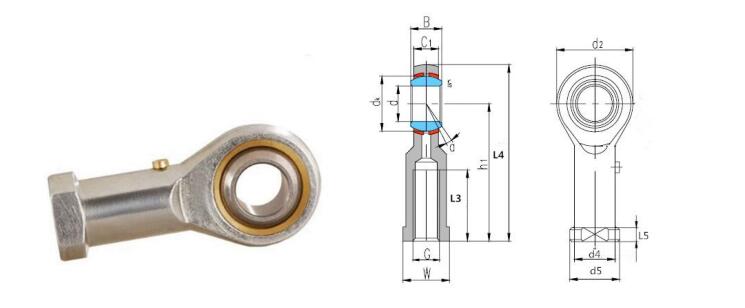

SIZP6S Female Threaded Rod End
Size: 6.35x19.05x42.85mm
Bore Diameter Bearing (d): 6.35mm
Outer Eye Diameter (d2): 19.05mm
Total Length Internal Thread Head (L4): 42.85mm
SIZP6S female thread rod end has a sliding contact surface: steel/bronze. Sliding surface with bronze liner; inner ring of carbon chromium steel, spherical surface with chromium plating; can be lubricated via a nipple or a hole in the rod end. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. SILZP6S
Applications:
1. Agricultural Machinery
2. Gardening Machinery
3. Pneumatics and Hydraulics
4. Port Machinery
5. Engineering Machinery
6. Heavy Trucks
7. Food Machinery
8. Etc.
