SAZP7S Rod End

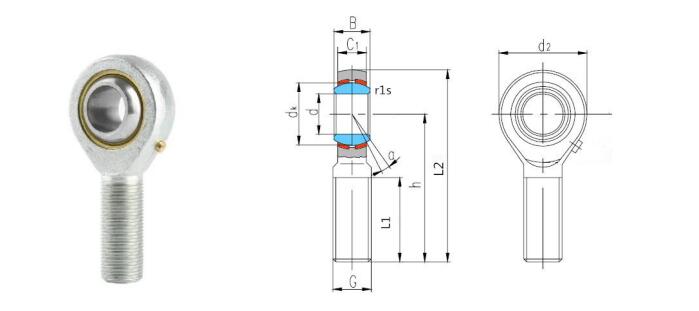

SAZP7S Rod EndSAZP7S Rod End Bearing
SAZP7S Male Threaded Rod End
Size: 7.94x22.23x58.72mm
Bore Diameter Bearing (d): 7.94mm
Outer Eye Diameter (d2): 22.23mm
Total Length Internal Thread Head (L2): 58.72mm
SAZP7S male thread rod end has a sliding contact surface: steel / bronze. Rod end of steel and zinc coated, sliding surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating; can be lubricated via a nipple or a hole in the rod end. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. SALZP7S
Applications:
1. Agricultural Machinery
2. Gardening Machinery
3. Pneumatics and Hydraulics
4. Port Machinery
5. Engineering Machinery
6. Heavy Trucks
7. Food Machinery
8. Etc.
