CF5 Rod End
CF5 Rod EndCF5 Rod End Bearing
CF5 Female Threaded Rod End

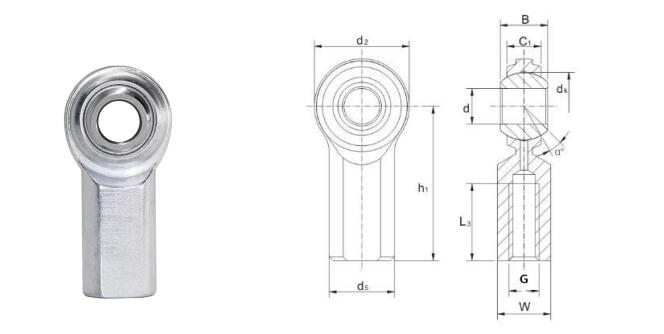

Size: 7.938x22.23x34.93mm
Bore Diameter Bearing (d): 7.938mm
Outer Eye Diameter (d2): 22.23mm
Shank Length Internal Thread Head (h1): 34.93mm
CF5 female thread rod end has a sliding contact surface: steel / steel. Rod body with right or left-hand female thread. Rod body pressed around inner ring. Rod end of steel and zinc coated. Inner ring of carbon chromium steel, spherical surface with chromium plating. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. CFL5.
Lubricating hole or grease nipple isn’t available for the sizes marked “*”. When a grease nipple is required for other sizes, please used the sign CF..S.
Applications:
1. Agricultural Machinery
2. Pneumatics and Hydraulics
3. Engineering Machinery
4. Heavy Trucks
5. Food Machinery
6. Etc.
