CM10 Rod End
CM10 Rod EndCM10 Rod End Bearing
CM10 Male Threaded Rod End

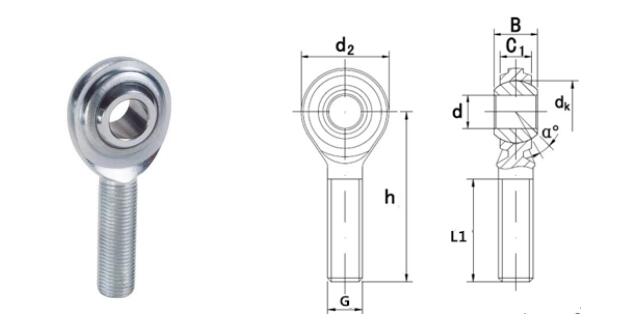

Size: 15.875x38.1x66.68mm
Bore Diameter Bearing (d): 15.875mm
Outer Eye Diameter (d2): 38.1mm
Shank Length External Thread Rod (h): 66.68mm
CM10 male thread rod end has a sliding contact surface: steel / steel. Rod body with right or left-hand male thread. Rod body pressed around inner ring. Rod end of steel and zinc coated. Inner ring of carbon chromium steel, spherical surface with chromium plating. With large loading capability, easy mounting and dismounting.
For left-hand thread, please add suffix “L”, E.G. CML10.
Lubricating hole or grease nipple isn’t available for the sizes marked “*”. When a grease nipple is required for other sizes, please used the sign CM..S.
Applications:
1. Agricultural Machinery
2. Engineering Machinery
3. Pneumatics and Hydraulics
4. Heavy Trucks
5. Food Machinery
6. Etc.
