CF3Y Rod End
CF3Y Rod EndCF3Y Rod End Bearing
CF3Y Rod End Bearing with Stud
CF3Y Female 2 Piece Rod End Bearing with Stud

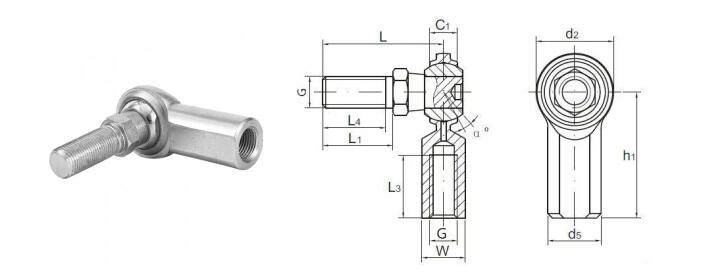

CF3Y is a 2 piece metal to metal rod end with stud. Sliding contact surface: steel / steel; housing is made of carbon steel and zine plated; inner ring is made of bearing steel, heat treated and hard chrome plated; stud is made of carbon steel and zinc plated.
For left-hand thread, please add suffix “L”, E.G. CFL3Y.
Lubricating hole or grease nipple isn’t available for the sizes marked “*”. When a grease nipple is required for other sizes, please used the sign CF..YS.
Applications:
Linkage applications where a bearing has to accommodate severe misalignment.
 |
||||||||||||
| Bearing Number | Boundary dimensions (mm) | |||||||||||
| C1 | d2 |
G 2B |
h1 |
L3 min |
W | d5 | L | L1 |
a° ≈ |
Radial clearance mm | Weight (kg) | |
| CF3Y* | 5.94 | 15.88 | 10-32 | 26.97 | 12.70 | 7.92 | 10.31 | 25.40 | 6.35 | 25 | 0.01-0.03 | 0.023 |
