NHS28T Rod End
NHS28T Rod EndNHS28T Rod End Bearing

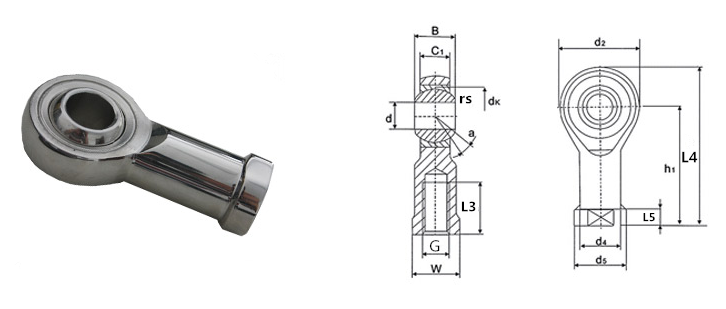

NHS28T Female Threaded Rod End
Size: 28x66x143mm
Bore Diameter Bearing (d): 28mm
Outer Eye Diameter (d2): 66mm
Total Length Internal Thread Head (L4): 143mm
NHS28T female thread rod end has a sliding contact surface: steel / PTFE fabric. Rod body with right or left-hand female thread. Body is made of carbon steel, zinc plated; ball is made of bearing steel, heat treated, hard chrome plated; liner is made of PTFE, strong & flexible mesh spread with fluorine resin. Self-lubricating type, PTFE liner, low clearance, suitable for precision applications.
For left-hand thread, please add suffix “L”, E.G. NHSL28T.
Applications:
1. Agricultural Machinery
2. Pneumatics and Hydraulics
3. Engineering Machinery
4. Heavy Trucks
5. Food Machinery
6. Etc.
