NOS30T Rod End
NOS30T Rod EndNOS30T Rod End Bearing

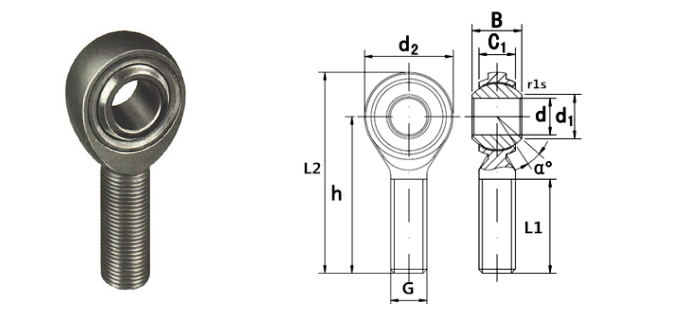

NOS30T Male Threaded Rod End
Size: 30x70x145mm
Bore Diameter Bearing (d): 30mm
Outer Eye Diameter (d2): 70mm
Total Length Internal Thread Head (L2): 145mm
NOS30T male thread rod end has a sliding contact surface: steel / PTFE fabric. Rod body with right or left-hand male thread. Maintenance free. Body is made of carbon steel, zinc plated; ball is made of bearing steel, heat treated, hard chrome plated; liner is made of PTFE, strong & flexible mesh spread with fluorine resin. Self-lubricating type, PTFE liner, low clearance, suitable for precision applications.
For left-hand thread, please add suffix “L”, E.G. NOSL30T.
Applications:
1. Agricultural Machinery
2. Pneumatics and Hydraulics
3. Port Machinery
4. Engineering Machinery
5. Heavy Trucks
6. Food Machinery
7. Etc.
