CM7T Rod End
CM7T Rod EndCM7T Rod End Bearing

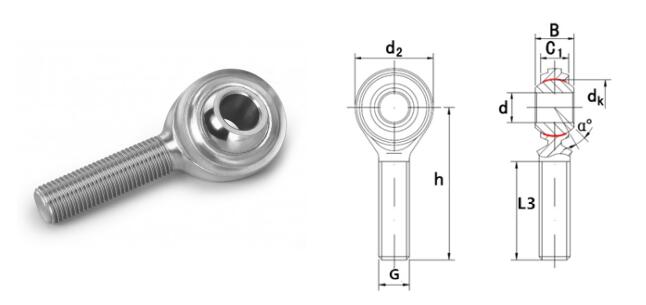

CM7T Male Threaded Rod End
Size: 11.113x28.58x53.98mm
Bore Diameter Bearing (d): 11.113mm
Outer Eye Diameter (d2): 28.58mm
Shank Length External Thread Rod (h): 53.98mm
CM7T male thread rod end has a sliding contact surface: steel / PTFE fabric. Rod body with right or left-hand male thread. Body is made of carbon steel, zinc plated & chromate treated; ball is made of bearing steel, heat treated, hard chrome plated; liner is made of PTFE, strong & flexible mesh spread with fluorine resin.
For left-hand thread, please add suffix “L”, E.G. CML7T.
Applications:
1. Agricultural Machinery
2. Pneumatics and Hydraulics
3. Port Machinery
4. Engineering Machinery
5. Heavy Trucks
6. Food Machinery
7. Etc.
