JF4 Rod End
JF4 Rod EndJF4 Rod End Bearing

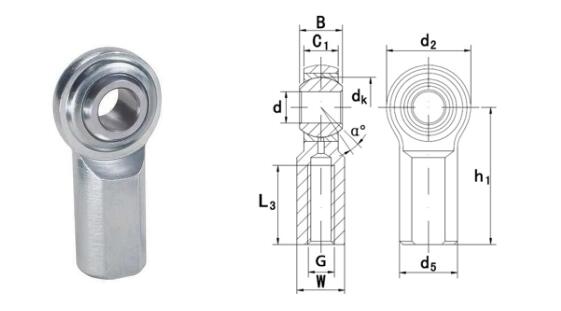

JF4 Female Threaded Rod End
Size: 6.35x19.05x33.32mm
Bore Diameter Bearing (d): 6.35mm
Outer Eye Diameter (d2): 19.05mm
Shank Length Internal Thread Head (h1): 33.32mm
JF4 female thread rod end, rod body with right or left-hand female thread. Body is made of carbon steel, zinc plated, chromate treated; ball is made of bearing steel, hardness hard chrome plated; race is made of steel alloy, heat treated zinc plated, chromate treated.
For left-hand thread, please add suffix “L”, E.G. JFL4.
Applications:
1. Agricultural Machinery
2. Pneumatics and Hydraulics
3. Engineering Machinery
4. Material Handling
5. Heavy Trucks
6. Mining Equipment
7. Etc.
