CS8 Ball Joint Rod End
CS8 Rod EndCS8 Rod End Bearing
CS8 Ball Joint Rod End
CS8 rod end with shank type of left hand female to right hand male. Ball Housing is made of carbon steel and white zinc plated; ball joint shaft is made of bearing steel, shaft is 35# steel. Mainly for transferring motion between widely separated points. It has characteristics of impact resistance, anti-corrosion, high temperature resistance, low noise and durable.
Applications:
1. Pneumatic Components
2. Transportation Systems
3. Packaging Equipment
4. Agriculture Equipment
5. Construction Machinery
6. Automatic Control Components
7. Etc.
 |
||||||||||||||

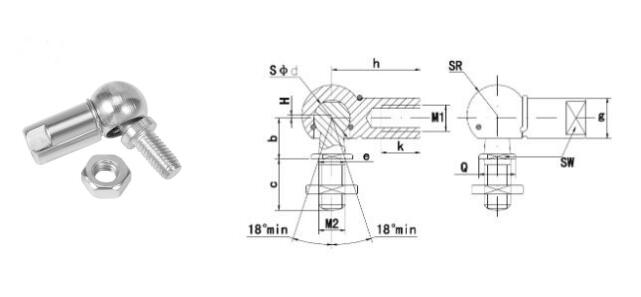

| Bearing Number | Boundary dimensions (mm) | |||||||||||||
|
h ±0.3 |
g ±0.5 |
M1 6H |
M1 6g |
SΦd |
b ±0.3 |
SW h14 |
Q h14 |
c ±0.3 |
e |
H ±0.5 |
k min |
SR ±0.5 |
Weight (kg) |
|
| CS8 | 22 | 8 | M5x0.8 | M5x0.8 | 8 | 9 | 7 | 8 | 10 | 5 | 0.7 | 10.2 | 6.4 | 0.014 |
