UCP209 Pillow Block Bearing
UCP209 BearingUCP209 Pillow Block Bearing

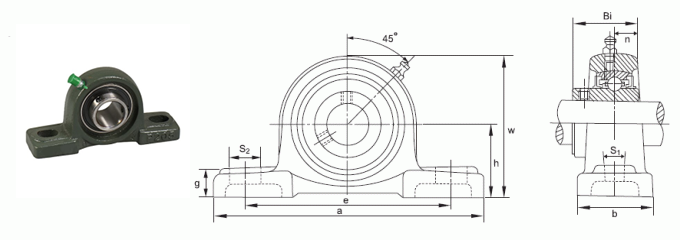

UCP209 Pillow Block Ball Bearing Unit
Shaft Dia.(d) : 45 mm
Shaft Height (h): 54 mm
Housing Length (a): 190 mm
Bearing No.: UC209
Housing No.: P209
UCP pillow blocks are suggested for industrial applications where normal loads are encountered. Compact, one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. UCP series housed units feature the set screw locking (UC) bearing insert.
Bearing prelubricated and ready for immediate installation. Grease fitting supplied for relubrication. The bonded seal design is well-suited for applications involving wet or dirty environments. Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units. Housing designed for ease of bearing replacement.
Applications:
1. Belt Drives Connecting Motors and Pumps
2. Long Shafts Connecting Motors and Industrial Gearboxes
3. Conveyor Belt Roller
4. Rolling Mills
5. Ventilation Systems
6. Paper Machines
