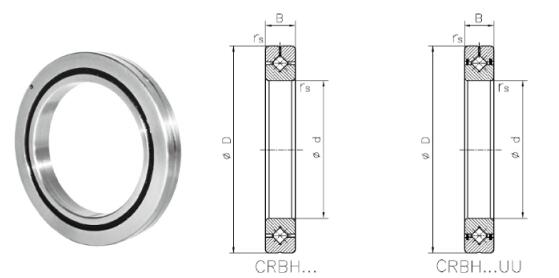

CRBH Series Cross Roller Bearings
| Cross Roller Bearing | |||||||
 |
|||||||
| CRBH Series Cross Roller Bearings | |||||||
| Bearing Number | Boundary dimensions (mm) |
Basic load ratings (kN) |
Mass | ||||
| d | D | B | r min | Cr | Cor | Kg | |
| CRBH2008 | 20 | 36 | 8 | 0.3 | 3.23 | 3.1 | 0.04 |
| CRBH2508 | 25 | 41 | 8 | 0.3 | 3.63 | 3.83 | 0.05 |
| CRBH3010 | 30 | 55 | 10 | 0.3 | 7.35 | 8.36 | 0.12 |
| CRBH3510 | 35 | 60 | 10 | 0.3 | 7.64 | 9.12 | 0.13 |
| CRBH4010 | 40 | 65 | 10 | 0.3 | 8.33 | 10.6 | 0.15 |
| CRBJ4510 | 45 | 70 | 10 | 0.3 | 8.62 | 11.3 | 0.16 |
| CRBH5013 | 50 | 80 | 13 | 0.6 | 16.7 | 20.9 | 0.29 |
| CRBH6013 | 60 | 90 | 13 | 0.6 | 18 | 24.3 | 0.33 |
| CRBH7013 | 70 | 100 | 13 | 0.6 | 19.4 | 27.7 | 0.38 |
| CRBH8016 | 80 | 120 | 16 | 0.6 | 30.1 | 42.1 | 0.74 |
| CRBH9016 | 90 | 130 | 16 | 0.6 | 31.4 | 45.3 | 0.81 |
| CRBH10016 | 100 | 140 | 16 | 0.6 | 31.7 | 48.6 | 0.83 |
| CRBH10020 | 100 | 150 | 20 | 0.6 | 33.1 | 50.9 | 1.45 |
| CRBH11020 | 110 | 160 | 12 | 0.6 | 34 | 54 | 1.56 |
| CRBH12025 | 120 | 180 | 25 | 1 | 66.9 | 100 | 2.62 |
| CRBH13025 | 130 | 190 | 25 | 1 | 69.5 | 107 | 2.82 |
| CRBH14025 | 140 | 200 | 25 | 1 | 74.8 | 121 | 2.96 |
| CRBH15025 | 150 | 210 | 25 | 1 | 76.8 | 128 | 3.16 |
| CRBH20025 | 200 | 260 | 25 | 1 | 84.2 | 157 | 4 |
| CRBH25025 | 250 | 310 | 25 | 1.5 | 69.3 | 150 | 4.97 |
