XV Series Cross Roller Bearing
| Cross Roller Bearing | |||||||||||||
 |
|||||||||||||

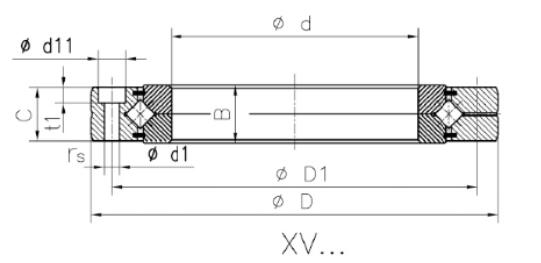

| XV Series Cross Roller Bearing | |||||||||||||
| Bearing Number | Boundary dimensions (mm) | Basic load ratings (kN) | Mass | ||||||||||
| d | D | B | C | D1 | N1 | d1 | d11 | t1 | rs | Cr | Cor | Kg | |
| XV30 | 30 | 75 | 15 | 14 | 60 | 12 | 4.6 | 8 | 4.6 | 2×20° | 7.4 | 10.4 | 0.37 |
| XV40 | 40 | 85 | 15 | 14 | 70 | 12 | 4.6 | 8 | 4.6 | 2×20° | 8.7 | 13.8 | 0.44 |
| XV50 | 50 | 100 | 17 | 16 | 85 | 12 | 5.6 | 10 | 5.4 | 2×20° | 13.1 | 21.5 | 0.67 |
| XV60 | 60 | 110 | 17 | 16 | 95 | 16 | 5.6 | 10 | 5.4 | 2×20° | 14.4 | 25.5 | 0.75 |
| XV70 | 70 | 120 | 17 | 16 | 105 | 16 | 5.6 | 10 | 5.5 | 2×20° | 15.1 | 28 | 0.84 |
| XV80 | 80 | 135 | 19 | 18 | 120 | 16 | 6.6 | 11 | 6.4 | 2×20° | 21.4 | 40.5 | 1.18 |
| XV90 | 90 | 145 | 19 | 18 | 130 | 16 | 6.6 | 11 | 6.4 | 2×20° | 22.3 | 44.4 | 1.29 |
| XV100 | 100 | 170 | 23 | 22 | 150 | 16 | 9 | 15 | 8.5 | 2×20° | 34.4 | 65 | 2.31 |
| XV110 | 110 | 180 | 23 | 22 | 160 | 16 | 9 | 15 | 8.5 | 2×20° | 36.2 | 72 | 2.48 |
