LME Series

LME Series

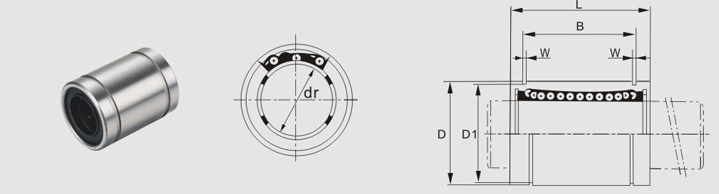

Bearing No. No.
Of
Ball
 Rows
Main Dimensions Eccentiricit
 (Max.)
Basic Load
 Rating
Weight
  (g)
Inscribed
Circle Dia
Outer
 Dia
Length Outer
Locking
 Groove
W
dr Tolerance D Tolerance L Tolerance B Tolerance D1 Dynamic
 (kgf)
Static Co
 (kgf)
LME3 4 3 +0.008-0 7 0   -0.009 10 0    -0.12         0.010 7 11
LME4 4 4 8 12         9 13
LME5 4 5 12 22 0    -0.02 14.5 0    -0.20 11.5 1.1 0.012 21 27 14
LME8UU 4 8 16 25 16.5 15.2 1.1 27 41 20
LME10UU 4 10 19 0   -0.009 29 22 18 1.3 38 47 30
LME12UU 4 12 22 32 22.9 21 1.3 52 79 40
LME16UU 5 16 +0.009  -0.001 26 36 24.9 24.9 1.3 59 91 50
LME20UU 5 20 32 0   -0.011 45 31.5 30.3 1.6 0.015 88 140 90
LME25UU 6 25 +0.011  -0.001 40 58 0    -0.03 44.1 0    -0.30 37.5 1.85 100 160 207
LME30UU 6 30 47 68 52.1 44.5 2.15 160 280 320
LME40UU 6 40 +0.013  -0.002 62 0   -0.013 80 60.6 59 2.15 0.017 220 400 674
LME50UU 6 50 75 100 77.6 72 2.65 390 810 1170
LME60UU 6 60 90 0   -0.015 125 0    -0.04 101.7 0    -0.40 86.5 3.15 0.020 480 1020 1950
