LME...OP Series
| Linear Bearings | ||||||||||||||||
 |
||||||||||||||||

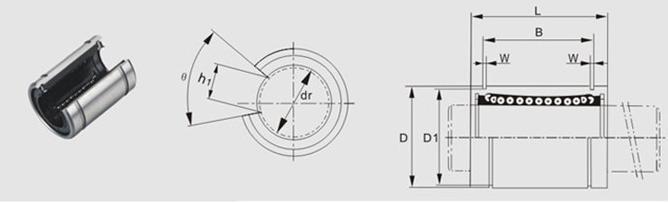

| LME...OP Series Linear Bearings | ||||||||||||||||
| Bearing No. |
No. Of Ball Rows |
Main Dimensions |
Eccentiricit (Max.) |
Basic Load Rating |
||||||||||||
| Inscribed Circle Dia | Outer Diameter | Length |
Outer Locking Groove |
W | hI | θ |
Dynamic C (kgf) |
Static Co (kgf) |
||||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | B | Tolerance | D1 | ||||||||
| LME10OP | 3 | 10 | +0.008 ~ 0 | 19 | 0 ~ -0.009 | 29 | 0 ~ -0.20 | 22 | 0 ~ 0.20 | 18 | 1.3 | 6.8 | 80 | 0.012 | 38 | 47 |
| LME12OP | 3 | 12 | +0.008 ~ 0 | 22 | 0 ~ -0.009 | 32 | 0 ~ -0.20 | 22.9 | 0 ~ 0.20 | 21 | 1.3 | 7.5 | 78 | 0.012 | 52 | 79 |
| LME16OP | 4 | 16 | +0.009 ~ -0.001 | 26 | 0 ~ -0.009 | 36 | 0 ~ -0.20 | 24.9 | 0 ~ -0.20 | 24.9 | 1.3 | 10 | 78 | 0.012 | 59 | 91 |
| LME20OP | 4 | 20 | +0.009 ~ -0.001 | 32 | 0 ~ -0.011 | 45 | 0 ~ -0.20 | 31.5 | 0 ~ -0.20 | 30.3 | 1.6 | 10 | 60 | 0.015 | 88 | 140 |
| LME25OP | 5 | 25 | +0.011 ~ -0.001 | 40 | 0 ~ -0.011 | 58 | 0 ~ -0.30 | 44.1 | 0 ~ -0.30 | 37.5 | 1.85 | 12.5 | 60 | 0.015 | 100 | 160 |
| LME30OP | 5 | 30 | +0.011 ~ -0.001 | 47 | 0 ~ -0.011 | 68 | 0 ~ -0.30 | 52.1 | 0 ~ -0.30 | 44.5 | 1.85 | 12.5 | 60 | 0.015 | 160 | 280 |
| LME40OP | 5 | 40 | +0.013 ~ -0.002 | 62 | 0 ~ -0.013 | 80 | 0 ~ -0.30 | 60.6 | 0 ~ -0.30 | 59 | 2.15 | 16.8 | 60 | 0.017 | 220 | 400 |
| LME50OP | 5 | 50 | +0.013 ~ -0.002 | 75 | 0 ~ -0.013 | 100 | 0 ~ -0.30 | 77.6 | 0 ~ -0.30 | 72 | 2.65 | 21 | 60 | 0.017 | 390 | 810 |
| LME60OP | 5 | 60 | +0.013 ~ -0.002 | 90 | 0 ~ -0.022 | 125 | 0 ~ -0.40 | 101.7 | 0 ~ -0.40 | 86.5 | 3.15 | 27.2 | 60 | 0.020 | 480 | 1020 |
