PRODUCT CATALOGUE
LM...AJ Series
| Linear Bearings | |||||||||||||||
 |
|||||||||||||||

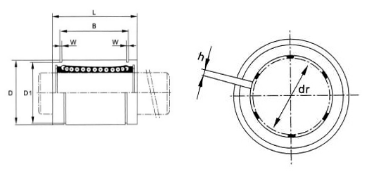

| LM...AJ Series Linear Bearings | |||||||||||||||
| Bearing No. |
No. Of Ball Rows |
Main Dimensions |
Eccentiricit (Max.) |
Basic Load Rating |
|||||||||||
| Inscribed Circle Dia | Outer Diameter | Length |
Outer Locking Groove |
W | h |
Dynamic C (kgf) |
Static Co (kgf) |
||||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | B | Tolerance | D1 | |||||||
| LM6AJ | 4 | 6 | 0 ~ -0.009 | 12 | 0 ~ -0.011 | 17 | 0 ~ -0.20 | 13.5 | 0 ~ -0.20 | 11.5 | 1.1 | 1 | 0.012 | 21 | 27 |
| LM8SAJ | 4 | 8 | 0 ~ -0.009 | 15 | 0 ~ -0.011 | 19 | 0 ~ -0.20 | 11.5 | 0 ~ -0.20 | 14.3 | 1.1 | 1 | 0.012 | 18 | 23 |
| LM8AJ | 4 | 8 | 0 ~ -0.009 | 15 | 0 ~ -0.011 | 24 | 0 ~ -0.20 | 17.5 | 0 ~ -0.20 | 14.3 | 1.1 | 1 | 0.012 | 27 | 41 |
| LM10AJ | 4 | 10 | 0 ~ -0.009 | 19 | 0 ~ -0.013 | 29 | 0 ~ -0.20 | 22 | 0 ~ -0.20 | 18 | 1.3 | 1 | 0.012 | 38 | 56 |
| LM12AJ | 4 | 12 | 0 ~ -0.009 | 21 | 0 ~ -0.013 | 30 | 0 ~ -0.20 | 23 | 0 ~ -0.20 | 20 | 1.3 | 1.5 | 0.012 | 42 | 61 |
| LM13AJ | 4 | 13 | 0 ~ -0.009 | 23 | 0 ~ -0.013 | 32 | 0 ~ -0.20 | 23 | 0 ~ -0.20 | 22 | 1.3 | 1.5 | 0.012 | 52 | 79 |
| LM16AJ | 5 | 16 | 0 ~ -0.009 | 28 | 0 ~ -0.013 | 37 | 0 ~ -0.20 | 26.5 | 0 ~ -0.20 | 27 | 1.6 | 1.5 | 0.012 | 79 | 120 |
| LM20AJ | 5 | 20 | 0 ~ -0.010 | 32 | 0 ~ -0.016 | 42 | 0 ~ -0.20 | 30.5 | 0 ~ -0.20 | 30.5 | 1.6 | 1.5 | 0.015 | 88 | 140 |
| LM25AJ | 6 | 25 | 0 ~ -0.010 | 40 | 0 ~ -0.016 | 59 | 0 ~ -0.30 | 41 | 0 ~ -0.30 | 38 | 1.85 | 2 | 0.015 | 100 | 160 |
| LM30AJ | 6 | 30 | 0 ~ -0.010 | 45 | 0 ~ -0.016 | 64 | 0 ~ -0.30 | 44.5 | 0 ~ -0.30 | 43 | 1.85 | 2.5 | 0.015 | 160 | 280 |
| LM35AJ | 6 | 35 | 0 ~ -0.012 | 52 | 0 ~ -0.019 | 70 | 0 ~ -0.30 | 49.5 | 0 ~ -0.30 | 49 | 2.1 | 2.5 | 0.02 | 170 | 320 |
| LM40AJ | 6 | 40 | 0 ~ -0.012 | 60 | 0 ~ -0.019 | 80 | 0 ~ -0.30 | 60.5 | 0 ~ -0.30 | 57 | 2.1 | 3 | 0.02 | 220 | 410 |
| LM50AJ | 6 | 50 | 0 ~ -0.012 | 80 | 0 ~ -0.019 | 100 | 0 ~ -0.30 | 74 | 0 ~ -0.30 | 76.5 | 2.6 | 3 | 0.02 | 390 | 810 |
| LM60AJ | 6 | 60 | 0 ~ -0.015 | 90 | 0 ~ -0.022 | 110 | 0 ~ -0.30 | 85 | 0 ~ -0.30 | 86.5 | 3.15 | 3 | 0.025 | 480 | 1020 |
