Applications Examples
Applications Examples
 |
||
 |
||
| No | Name | Material |
| 1 | KDAS Combination Seals | multiple |
| 2 | DXH, FQ Guide Ring | POM, NBR+Cloth |
| 3 | GBU Ladder Seals | TPU, POM |
| 4 | GY, GYX Seals | TPU |
| 5 | FN, FC, FD Wiper (dust ring) | RP |
|
Working conditions Pressure：40MPa Temperature：－30℃～＋100℃ Speed：0.5m/s Usage：Vertical, amplitude, telescopic hydraulic cylinder |
||
 |
||
 |
||
| No | Name | Material |
| 1 | KG Double Action Combination Seals | NBR, F4 Filling |
| 2 | DXH, FQ Guide Ring | POM, NBR+Cloth |
| 3 | GS Ladder Seals | NBR, F4 Filling |
| 4 | GY, GYX Seals | TPU |
| 5 | FN, FC, FD Wiper (dust ring) | RP |
|
Working conditions Pressure：30MPa (Peak 54MPa) Temperature：－40℃～＋100℃ Speed：2m/s max Usage：Boom, bucket, boom cylinder |
||
 |
||
 |
||
| No | Name | Material |
| 1 | KG Double Action Combination Seals | NBR, F4 Filling |
| 2 | DXH, FQ Guide Ring | POM, NBR+Cloth |
| 3 | GS Ladder Seals | NBR, F4 Filling |
| 4 | GY, GYX Seals | TPU |
| 5 | FN, FC, FD Wiper (dust ring) | RP |
|
Working conditions Pressure：25MPa Temperature：－40℃～＋100℃ Speed：0.5m/s max Usage：Steering hydraulic cylinder |
||
 |
||
 |
||
| No | Name | Material |
| 1 | KDAS Combination Seals | multiple |
| 2 | DXH, FQ Guide Ring | POM, NBR+Cloth |
| 3 | GS Ladder Seals | NBR, F4 Filling |
| 4 | GY Seals | TPU |
| 5 | FN, FC, FD Wiper (dust ring) | RP |
|
Working conditions Pressure：15MPa (Peak 50MPa) Temperature：－30℃～＋100℃ Speed：0.5m/s Usage：Lightweight boom cylinder |
||
 |
||
 |
||

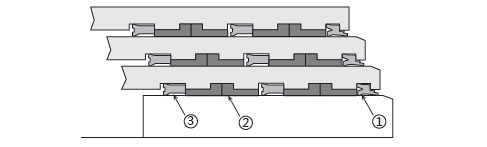

| No | Name | Material |
| 1 | Waterproof and Dustproof Seals | RP |
| 2 | Shaft Guide Rrings | POM |
| 3 | GYB Seals | TPU |
|
Working conditions Pressure：30MPa (Peak 54MPa) Temperature：－40℃～＋100℃ Speed：0.5m/s max Usage：Heavy-duty dump truck multistage cylinder |
||
 |
||
 |
||

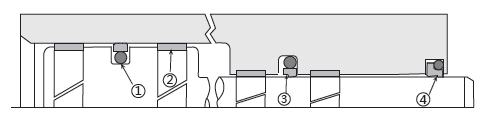

| No | Name | Material |
| 1 | KG Double Action Combined Seals | NBR, F4 Filling |
| 2 | DXH Guide Rings | F4 Filling |
| 3 | GS Ladder Seals | NBR, F4 Filling |
| 4 | FS Wiper (dust ring) | NBR, F4 Filling |
|
Working conditions Pressure：15MPa Temperature：－40℃～＋200℃ (Special Elastomer) Speed：0.5m/s max Usage：Hydraulic cylinder for machine tool use |
||
 |
||
 |
||
| No | Name | Material |
| 1 | DXH, FQ Guide Rings | POM, NBR+Cloth |
| 2 | KA Double Action Combined Seals | NBR, F4 Filling, POM |
| 3 | DXH, FQ Guide Rings | POM, NBR+Cloth |
| 4 | GS Ladder Seals | NBR, F4 Filling |
| 5 | GY Seals | TPU |
| 6 | FB Wiper (dust ring) | Steel Plate, TPU |
|
Working conditions Pressure：40MPa(Peak60MPa) Temperature：－30℃～＋100℃ Speed：1.5m/s max Usage：Heavy excavators |
||
 |
||

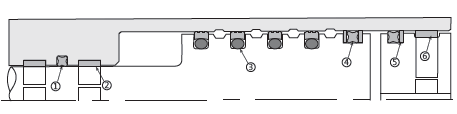

| No | Name | Material |
| 1 | X Type Seals (Quad Rings) | NBR |
| 2 | DXH Guide Rings | F4 Filling, POM |
| 3 | KZK Rotating Piston SealS | NBR, F4 Filling |
| 4 | X Type Seals (Quad Rings) | NBR |
| 5 | Back UP Rings | F4 |
| 6 | DXH Guide Rings | F4 Filling, POM |
|
Working conditions Pressure：30MPa Temperature：－30℃～＋110℃ Speed：2m/s max Usage：Central rotary joint |
||
