GFAI Dust Proof Guide Rings

Function and Usage
GFAI Dust Proof Guide Ring plays a supporting and guiding role to the piston rod, and simultaneously has the function of scraping dust. The special design structure makes the installation more reliable and stable. It is mainly used for heavy load condition.

Advantage
--Good pressure bearing capacity
--Inclined slice design is easy to install, and also, with high stability
--Perfect dust scraping effect
--Low friction coefficient of material, long service life

Material
Filled Polyoxymethylene Delrin (POM)   Our Material Code: S802

Technical Data
Working Temperature：-55℃ to +225℃ (Temperature refer to the material)
Speed: ≤1m/s
Dynamic Pressure:≤75N/mm² (60℃)
Working Medium: Mineral hydraulic oil, emulsion, water and other media
Tips: The operating limit to the load and temperature is maximum. In the actually usage, due to the interaction of work parameters the maximum must be lower.

Installation
Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed. The special design of GFAI dust proof guide ring requires a high fitting surface tolerance for the components.

Example of the Order Part No. :
GFAI Dust Proof Guide Ring
Series No.: GFAI  Piston Rod Diameter: d=100mm
Part Number: GFAI100110S802
GFAI: Series Number
100: Piston Rod Diameter
110: Groove Diameter
S802:Material Code

GFAI Dust Proof Guide Ring

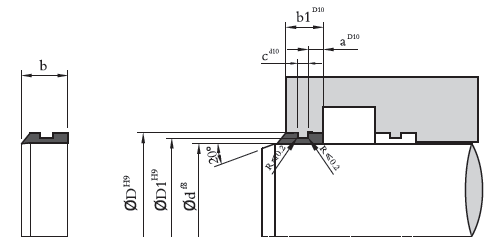

d	D	D1	b	b1	c	a	Part No.
25	31	28	19	17	6	6.5	GFAI025031
30	36	33	19	17	6	6.5	GFAI030036
32	38	35	19	17	6	6.5	GFAI032038
35	41	38	19	17	6	6.5	GFAI035041
36	42	39	19	17	6	6.5	GFAI036042
40	46	43	19	17	6	6.5	GFAI040046
45	51	48	19	17	6	6.5	GFAI045051
50	56	53	19	17	6	6.5	GFAI050056
55	61	58	19	17	6	6.5	GFAI055061
60	70	65	24	21	7	8.5	GFAI060070
63	73	68	24	21	7	8.5	GFAI063073
65	75	70	24	21	7	8.5	GFAI065075
70	80	75	24	21	7	8.5	GFAI070080
75	85	80	24	21	7	8.5	GFAI075085
80	90	85	24	21	7	8.5	GFAI080090
85	95	90	24	21	7	8.5	GFAI085095
90	100	95	24	21	7	8.5	GFAI090100
95	105	100	24	21	7	8.5	GFAI095105
100	110	105	24	21	7	8.5	GFAI100110
100	106	103	19	17	6	6.5	GFAI100106
105	115	110	24	21	7	8.5	GFAI105115
110	120	115	24	21	7	8.5	GFAI110120
120	130	125	24	21	7	8.5	GFAI120130
125	135	130	24	21	7	8.5	GFAI125135
130	140	135	24	21	7	8.5	GFAI130140
140	150	145	24	21	7	8.5	GFAI140150
150	162	156	35	31	15	10	GFAI150162
160	172	166	35	31	15	10	GFAI160172
165	177	171	35	31	15	10	GFAI165177
170	182	176	35	31	15	10	GFAI170182
180	192	186	35	31	15	10	GFAI180192
190	202	195	35	31	15	10	GFAI190202
200	212	206	35	31	15	10	GFAI200212
220	232	226	35	31	15	10	GFAI220232
225	237	231	35	31	15	10	GFAI225237
240	252	246	35	31	15	10	GFAI240252
250	262	256	35	31	15	10	GFAI250262
260	272	266	35	31	15	10	GFAI260272
280	292	286	35	31	15	10	GFAI280292
290	302	296	35	31	15	10	GFAI2903022
300	312	306	35	31	15	10	GFAI300312
320	332	326	35	31	15	10	GFAI320332
350	362	356	35	31	15	10	GFAI350362
360	372	366	35	31	15	10	GFAI360372
380	392	386	35	31	15	10	GFAI380392
400	412	406	35	31	15	10	GFAI400412
If any special requirements of the materials and sizes, please contact with us.
