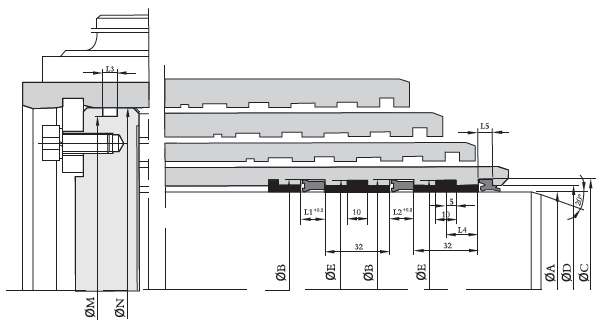

175 Series Multi-Stage Cylinder Seals
| 175 Series Multi-Stage Cylinder Seals | |||||||
 |
|||||||
|
Wiper (Dust Seal) |
Part No. | A | C | D | L5 | ||
 |
FJ110122 | 110 | 122 | 116 | 6.6 | ||
| FJ130142 | 130 | 142 | 136 | 6.6 | |||
| FJ152164 | 152 | 164 | 158 | 6.6 | |||
| FJ175187 | 175 | 187 | 181 | 6.6 | |||
| Main Seal | Part No. | A | B | L1 | |||
 |
GYB110120 | 110 | 120 | 12.5 | |||
| GYB130140 | 130 | 140 | 12.5 | ||||
| GYB152162 | 152 | 162 | 12.5 | ||||
| GYB175185 | 175 | 185 | 12.5 | ||||
| Secondary Seal | Part No. | A | B | L2 | |||
 |
GYB110120 | 110 | 120 | 11 | |||
| GYB130140 | 130 | 140 | 11 | ||||
| GYB152162 | 152 | 162 | 12 | ||||
| GYB175185 | 175 | 185 | 12 | ||||
| L Type Ring | Part No. | A | D | E | L4 | ||
 |
LH-1100616 | 110 | 116 | 122 | 16 | ||
| LH-1300616 | 130 | 136 | 142 | 16 | |||
| LH-152066 | 152 | 158 | 164 | 16 | |||
| LH-1750616 | 175 | 181 | 187 | 16 | |||
