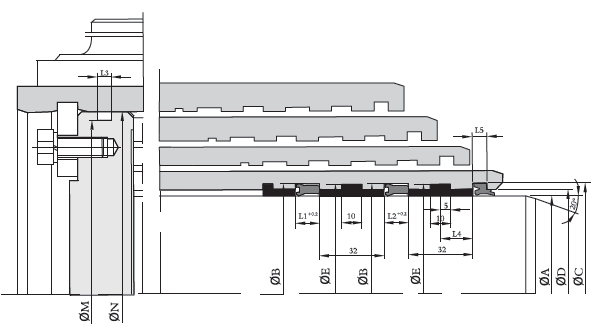

180 Series Multi-Stage Cylinder Seals
| 180 Series Multi-Stage Cylinder Seals | |||||||
 |
|||||||
|
Wiper (Dust Seal) |
Part No. | A | C | D | L5 | ||
 |
FJ100112 | 100 | 112 | 106 | 6.6 | ||
| FJ125137 | 125 | 137 | 131 | 6.6 | |||
| FJ150162 | 150 | 162 | 156 | 6.6 | |||
| FJ180192 | 180 | 192 | 186 | 6.6 | |||
| Main Seal | Part No. | A | B | L1 | |||
 |
GYB100110 | 100 | 110 | 13.5 | |||
| GYB125135 | 125 | 135 | 13.5 | ||||
| GYB150160 | 150 | 160 | 13.5 | ||||
| GYB180190 | 180 | 190 | 13.5 | ||||
| Secondary Seal | Part No. | A | B | L2 | |||
 |
GYB100110 | 100 | 110 | 12 | |||
| GYB125135 | 125 | 135 | 12 | ||||
| GYB150160 | 150 | 160 | 12 | ||||
| GYB180190 | 180 | 190 | 12 | ||||
| L Type Ring | Part No. | A | D | E | L4 | ||
 |
LH-1000616 | 100 | 106 | 112 | 16 | ||
| LH-1250616 | 125 | 131 | 137 | 16 | |||
| LH-1500616 | 150 | 156 | 162 | 16 | |||
| LH-1800616 | 180 | 186 | 192 | 16 | |||
