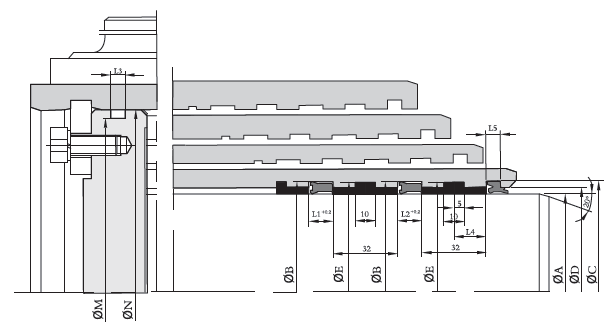

185 Series Multi-Stage Cylinder Seals
| 185 Series Multi-Stage Cylinder Seals | |||||||
 |
|||||||
|
Wiper (Dust Seal) |
Part No. | A | C | D | L5 | ||
 |
FJ110122 | 110 | 122 | 116 | 6.6 | ||
| FJ135147 | 135 | 147 | 141 | 6.6 | |||
| FJ160172 | 160 | 172 | 166 | 6.6 | |||
| FJ185197 | 185 | 197 | 191 | 6.6 | |||
| Main Seal | Part No. | A | B | L1 | |||
 |
GYB110120 | 110 | 120 | 12.5 | |||
| GYB135145 | 135 | 145 | 12.5 | ||||
| GYB160170 | 160 | 170 | 12.5 | ||||
| GYB185195 | 185 | 195 | 12.5 | ||||
| Secondary Seal | Part No. | A | B | L2 | |||
 |
GYB110120 | 110 | 120 | 12.5 | |||
| GYB135145 | 135 | 145 | 12.5 | ||||
| GYB160170 | 160 | 170 | 12.5 | ||||
| GYB185195 | 185 | 195 | 12.5 | ||||
| L Type Ring | Part No. | A | D | E | L4 | ||
 |
LH-1100616 | 110 | 116 | 122 | 16 | ||
| LH-1350616 | 135 | 141 | 147 | 16 | |||
| LH-1600616 | 160 | 166 | 172 | 16 | |||
| LH-1850616 | 185 | 191 | 197 | 16 | |||
