PRODUCT CATALOGUE

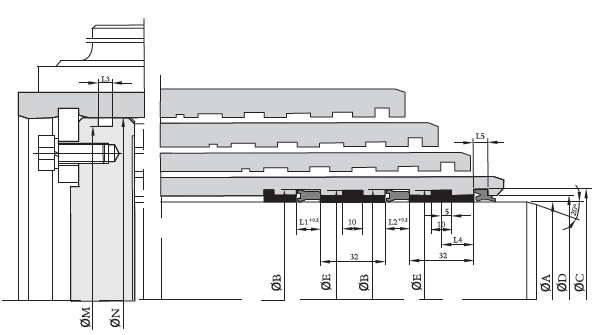

195 Series Multi-Stage Cylinder Seals
| 195 Series Multi-Stage Cylinder Seals | |||||||
 |
|||||||
|
Wiper (Dust Seal) |
Part No. | A | C | D | L5 | ||
 |
FJ120132 | 120 | 132 | 126 | 6.6 | ||
| FJ145157 | 145 | 157 | 151 | 6.6 | |||
| FJ170182 | 170 | 182 | 176 | 6.6 | |||
| FJ195207 | 195 | 207 | 201 | 6.6 | |||
| Main Seal | Part No. | A | B | L1 | |||
 |
GYB120130 | 120 | 130 | 12.5 | |||
| GYB145155 | 145 | 155 | 12.5 | ||||
| GYB170180 | 170 | 180 | 12.5 | ||||
| GYB195205 | 195 | 205 | 12.5 | ||||
| Secondary Seal | Part No. | A | B | L2 | |||
 |
GYB120130 | 120 | 130 | 11 | |||
| GYB145155 | 145 | 155 | 11 | ||||
| GYB170181 | 170 | 181 | 12 | ||||
| GYB195206 | 195 | 206 | 12 | ||||
| L Type Ring | Part No. | A | D | E | L4 | ||
 |
LH-1200616 | 120 | 126 | 132 | 16 | ||
| LH-1450616 | 145 | 151 | 157 | 16 | |||
| LH-1700616 | 170 | 176 | 182 | 16 | |||
| LH-1950616 | 195 | 201 | 207 | 16 | |||
