KDAS Piston Seals

Function and Usage
KDAS Piston Seal is a two way combination seal which is made by a rubber elestomer, two back ups, and two guide rings. The sealing effect under both dynamic and static are perfect. The special design of the sealing surface reduces the sliding friction force to prevent dry friction and prolong the service life;The back up anti-impact, can prevent the rubber elastic body is extruded to the seal’s gap; The guide ring performances the role of supporting and guiding. The compact design of the KDAS combination seal is easy to install, save space. It is widely used in low speed and high pressure hydraulic cylinder, such as vertical cylinder, amplitude cylinder, outrigger cylinder,the press machine cylinder and drive cylinder of industry and walking equipment, double action piston in supporting cylinder and operating cylinder.

Advantage
--Good sealing effect
-- Can installed in the close type groove, reduce the cost
--Economic oriented "sealing with guiding" solution
--Open cut back up and guide ring easy to install
--Standard components for standard mounting grooves

Material
Elestomer, Material: Nitrile Rubber (NBR)   Our Material Code: N801
Z type Back Up Material: Thermoplastic   Our Material Code: M700
L type Guide Ring Material: POM   Our Material Code: S805
Combination Code: N8MS

If the working condition is under low temperature, we suggest to use low temperature resistance Nitrile Rubber (NBR) for the elestomer, Our Material Code: NV705, Combination Code: NV9MS.

Technical Data
Working Pressure: ≤40MPa
Speed: ≤0.5m/s
Working Temperature：-35℃ to +100℃
Working Medium: Mineral hydraulic oil,fire resistant hydraulic oil, HFA, HFB, HFC, and etc.
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed. Installation sequence: Elestomer--Back Up--Guide Ring, should to ensure that the guide ring and back up’s opening configuration position are staggered.

Example of the Order Part No. :
KDAS Piston Seal
Series No.: KDAS    Cylinder Bore Diameter: d=100mm
Part Number: KDAS100075N8MS
KDAS: Series Number
100: Cylinder Bore Diameter
075: Groove Diameter
N8MS: Material Code

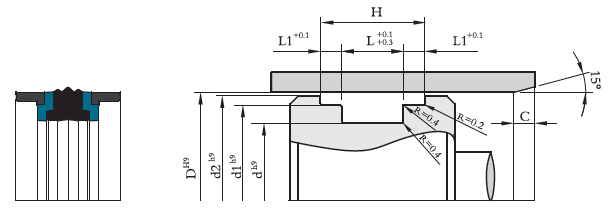

KDAS Piston Seals
D	d	d1	d2	L	L1	H	Part No.	Remarks
20	11	17	19	13.5	2.1	17.7	KDAS020011	●
25	15	22	24	12.5	4	20.5	KDAS025015	●
30	21	27	29	13.5	2.1	17.7	KDAS030021	●
32	22	28	31	15.5	2.6	20.7	KDAS032022	●
32	22	28.5	31	16.4	6.35	29.1	KDAS032022A	○
35	25	31	34	15.5	2.6	20.7	KDAS035025	●
40	24	35.4	38.5	18.4	6.35	31.1	KDAS040024	○
40	26	36	39	15.5	2.6	20.7	KDAS040026	●
40	30	35.4	38.5	16.4	6.35	29.1	KDAS040030A	●
40	30	37	39	12.5	4	20.5	KDAS040030B	●
45	29	40.4	44	18.4	6.35	31.1	KDAS045029	●
45	35	40.4	43.5	16.4	6.35	29.1	KDAS045035	○
50	34	45.4	48.5	18.4	6.35	31.1	KDAS050034A	●
50	34	46	49	20.5	3.1	26.7	KDAS050034B	●
50	34	45.6	49	18.4	6.35	31.1	KDAS050034C	●
50	38	46	49	20.5	3.1	26.7	KDAS050038	●
55	39	50.36	53.5	18.4	6.35	31.1	KDAS055039	●
55	39	51	54	20.5	3.1	26.7	KDAS055039A	○
60	44	55.4	58.5	18.4	6.35	31.1	KDAS060044A	●
60	44	56	59	20.5	3.1	26.7	KDAS060044B	●
63	47	58.4	61.9	18.4	6.35	31.1	KDAS063047A	●
63	47	59	62	20.5	3.1	26.7	KDAS063047B	●
63	51	59	62	20.5	3.1	26.7	KDAS063051	●
65	50	60.4	63.5	18.4	6.35	31.1	KDAS065050	○
65	49	61	64	20.5	3.1	26.7	KDAS065049	●
70	50	64.2	68.3	22.4	6.35	35.1	KDAS070050	●
70	54	66	69	20.5	3.1	26.7	KDAS070054	●
70	58	66	69	20.5	3.1	26.7	KDAS070058	●
75	55	69.2	73.3	22.4	6.35	35.1	KDAS075055	●
75	59	71	74	20.5	3.1	26.7	KDAS075059	○
80	60	74.15	78.3	22.4	6.35	35.1	KDAS080060	●
80	62	76	79	22.5	3.6	29.7	KDAS080062	●
80	66	76	78.5	22.5	5.2	32.9	KDAS080066	●
85	65	79.15	83.3	22.4	6.35	35.1	KDAS085065	●
90	70	84.15	88.3	22.4	6.35	35.1	KDAS090070	●
90	72	86	89	22.5	3.6	29.7	KDAS090072	●
95	75	89.15	93.3	22.4	6.35	35.1	KDAS095075	●
100	75	93.15	98	22.4	6.35	35.1	KDAS100075	●
100	82	96	99	22.5	3.6	29.7	KDAS100082	●
100	86	96	99.4	22.5	5.2	32.9	KDAS100086	●
105	80	98.1	103	22.4	6.5	35.4	KDAS105080	●
110	85	103.1	108	22.4	6.35	35.1	KDAS110085	●
110	92	106	109	22.5	3.6	29.7	KDAS110092	●
110	96	106	109.4	22.5	5.2	32.9	KDAS110096	●
115	90	108.1	113	22.4	6.35	35.1	KDAS115090	●
120	95	113.1	118	22.4	6.35	35.1	KDAS120095	●
120	106	116	119	22.5	5.2	32.9	KDAS120106	●
125	100	118.1	123	25.4	6.35	38.1	KDAS125100	●
125	108	121	123.3	26.5	7.2	40.9	KDAS125108	●
125	103	121	124	26.5	5.1	39.7	KDAS125103	●
130	105	122.6	127.5	25.4	9.5	44.4	KDAS130105	●
135	110	127.6	132.5	25.4	9.5	44.4	KDAS135110	○
140	115	132.6	167.5	25.4	9.5	44.4	KDAS140115A	●
140	115	133	138	25.4	6.35	38.1	KDAS140115B	●
140	118	136	139	26.5	5.1	36.7	KDAS140118	●
145	120	137.6	142.5	25.4	9.5	44.4	KDAS145120	●
150	125	142.6	147.5	25.4	9.5	44.4	KDAS150125	●
155	130	147.6	152.5	25.4	9.5	44.4	KDAS155130	○
160	130	152.6	157.5	25.4	9.5	44.4	KDAS160130A	●
160	130	153	157.5	25.4	6.35	38.1	KDAS160130B	○
160	135	152.6	157.5	25.4	9.5	44.4	KDAS160135	●
160	138	156	159	26.5	5.1	36.7	KDAS160138	●
165	140	157.6	162.5	25.4	9.5	44.4	KDAS165140	●
170	145	161.7	167.1	25.4	12.7	50.8	KDAS170145	●
175	150	166.7	172.1	25.4	12.7	50.8	KDAS175150	●
180	150	172.95	177.87	35.4	6.35	48.1	KDAS180150	○
180	155	171.7	177.1	25.4	12.7	50.8	KDAS180155	●
180	158	176	179	26.5	5.1	36.7	KDAS180158	●
185	160	176.7	182.1	25.4	12.7	50.8	KDAS185160	○
190	165	181.7	187	25.4	12.7	50.8	KDAS190165	●
195	170	186.7	192	25.4	12.7	50.8	KDAS195170	○
200	175	191.6	197	25.4	12.7	50.8	KDAS200175	●
200	175	196	199	31.6	6.6	44.7	KDAS200175A	○
210	185	201.6	207	25.4	12.7	50.8	KDAS210185	●
220	190	212.7	217.9	35.4	6.35	48.1	KDAS220190	●
220	195	211.6	217	25.4	12.7	50.8	KDAS220195	●
230	205	221.6	227	25.4	12.7	50.8	KDAS230205	●
240	215	231.6	237	25.4	12.7	50.8	KDAS240215	●
250	225	241.6	247	25.4	12.7	50.8	KDAS250225	●
260	235	251.6	257	25.4	12.7	50.8	KDAS260235	●
270	245	261.6	267	25.4	12.7	50.8	KDAS270245	●
280	255	271.6	277	25.4	12.7	50.8	KDAS280255	●
300	275	291.6	297	25.4	12.7	50.8	KDAS300275	●
310	285	301.6	307	25.4	12.7	50.8	KDAS310285	○
320	295	311.6	317	25.4	12.7	50.8	KDAS320295	●
350	325	341.6	347	25.4	12.7	50.8	KDAS350325	○
360	335	351.6	357	25.4	12.7	50.8	KDAS360335	●
370	345	361.6	367	25.4	12.7	50.8	KDAS370345	○
380	355	371.6	377	25.4	12.7	50.8	KDAS380355	●
400	375	391.6	397	25.4	12.7	50.8	KDAS400375	●
420	395	411.6	417	25.4	12.7	50.8	KDAS420395	●
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
