KZP Piston Seals

Function and Usage
KZP Piston Seal is a two way double action compact seal. It is consisted by a polyurethane slip ring, a rubber elastomer body and two high pressure back up rings. The initial surplus of the elastomer can satisfy the sealing performance under lower pressure and static; when the pressure is increasing, the elastomer pressurizes to the PTFE slip ring, and change the axial force of the system pressure to radial extrusion to ensure the stability of the dynamic seal; the back up ring is impact resistant, can prevents the slip ring to be extruded to the seal gap. KZP Piston Seal is suitable for the piston of heavy load walking machine hydraulic cylinder and pump truck arm hydraulic cylinder.

Advantage
--Good sealing effect under both dynamic and static
-- wear resistant, long service life
--Anti extrusion, compression deformation is small
--Simple design, easy to install

Material
Slip Ring Material: Polyurethane   Our Material Code: P905
Elestomer Material: Nitrile Rubber (NBR)   Our Material Code: N802
Back Up Material: Thermoplastic     Our Material Code: M701
Combination Code: N8PM

If the working condition is under low temperature, we suggest to use low temperature resistance Nitrile Rubber (NBR) for the elestomer , Our Material Code: NV705, Combination Code: NV7PM

Technical Data
Working Pressure: ≤50MPa
Speed: ≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: petroleum base hydraulic oil, fire resistant hydraulic fluid, environmental safety hydraulic oil (Bio oil), water, and etc.
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

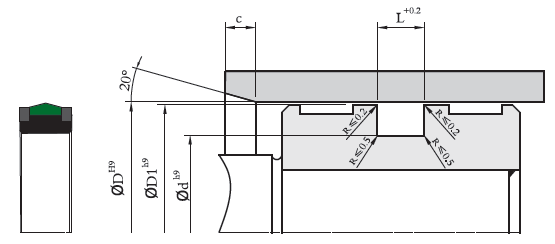

Installation
Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
KZP Piston Seal
Series No.: KZP   Cylinder Bore Diameter: d=100mm
Part Number: KZP100086N8PM
KZP: Series Number
100: Cylinder Bore Diameter
086: Groove Diameter
N8PM: Material Code


KZP Piston Seals
D	d	L	D1	C	Part No.	Remarks
50	38	14.5	49.5	7	KZP050038	○
60	48	20.5	59.5	7	KZP060048	○
63	47	19.4	62.5	7	KZP063047	○
65	53	19.5	64.5	7	KZP065053	○
70	58	20.5	69.5	7	KZP070058	●
75	63	18.5	74.5	7	KZP075063	○
80	62	22.5	79.5	7	KZP080062	●
90	75	21	89.5	7	KZP090075	●
100	86	22.5	99.5	7	KZP100086	●
110	95	18	109.5	7	KZP110095	●
120	105	16	119.5	7	KZP120105	●
125	100	25	124.5	7	KZP125100	○
130	108	26.5	129.5	7	KZP130108	○
130	113	20.5	129.5	7	KZP130113	●
135	118	20.5	134.5	7	KZP135118	●
140	123	26.5	139.5	7	KZP140123	●
150	130	25.5	149.5	7	KZP150130	●
150	133	20	159.5	10	KZP150133	●
160	143	20	159.5	10	KZP160143	●
165	145	25.5	164.5	10	KZP165145	●
170	150	20	169.5	10	KZP170150	●
180	160	25	179.5	10	KZP180160	●
180	163	20	179.5	10	KZP180163	●
200	175	25.5	199.5	10	KZP200175	●
200	183	20	199.5	10	KZP200183	●
225	205	25	224.5	10	KZP225205	●
240	220	20	239.5	10	KZP240220	●
D	d	L	D1	C	Part No.	Remarks
110	95	16	109.5	7	KZP110095A	●
110	95	18	109.5	7	KZP110095B	○
115	97	22.5	114.5	7	KZP115097	○
120	105	16	119.5	7	KZP120105	●
125	110	15.8	124.5	7	KZP125110	●
130	115	16	129.5	7	KZP130115	●
140	125	16	139.5	7	KZP140125	●
155	140	16	154.5	7	KZP155140	○
165	150	16	164.5	7	KZP165150	●
180	163	20	179.5	7	KZP180163	●
190	170	16	189.5	7	KZP190170	●
200	180	16	199.5	7	KZP200180	●
210	190	16	209.5	7	KZP210190	●
220	195	22	219.5	7	KZP220195	○
220	200	20	219.5	7	KZP220200	●
224	204	20.5	223.5	7	KZP224204	○
230	210	16	229.5	7	KZP230210	●
240	220	25	239.5	7	KZP240220	●
245	220	25	244.5	10	KZP245220	○
250	225	31	249.5	10	KZP250225	●
260	235	25	259.5	10	KZP260235	●
270	245	24	269.5	10	KZP270245	●
280	255	25	279.5	10	KZP280255	●
300	275	25	299.5	10	KZP300275	●
310	285	25	309.5	12	KZP310285	●
320	290	30	319.5	12	KZP320290	●
330	300	30	329.5	12	KZP330300	●
340	315	25	339.5	12	KZP340315	●
350	320	30	349.5	12	KZP350320	○
360	330	30	259.5	12	KZP360330	●
380	350	32	379.5	12	KZP380350	●
400	370	32	3995	12	KZP400370	●
420	390	32	419.5	12	KZP420390	●
430	400	32	429.5	12	KZP430400	●
450	420	32	449.5	12	KZP450420	●
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
