KAQ Piston Seals

Function and Usage
KAQ Piston Seal is a two way combination seal. It is consisted by a PTFE slip ring, a quad ring, and two O rings as force element or one rectangle rubber elestomer .It combines the low friction properties of the PTFE material, and the good sealing performance of the rubber elastomer. This design greatly reduces the friction and minimizes the leakage. KAQ Piston Seal is mainly used for hydraulic walking device cylinder, crane cylinder, accumulator cylinder, standard cylinder, and heavy duty suspension cylinder.

Advantage
--In occasion which need to separate two kinds of media (such as: liquid / liquid or liquid / gas), high sealing efficiency
--Good sealing effect, wear resistant
--Low start pressure, small friction coefficient
--Simple groove design, small installation space
--Good sliding performance, no crawling

Material
Elestomer Material: Nitrile Rubber (NBR)   Our Material Code: N800
Slip Ring Material: Filled PTFE   Our Material Code: T605
Quad Ring Material: Polyurethane   Our Material Code: P902
Combination Code: N8TP

If the working condition is under high temperature and chemical resistant medium, we suggest to use FKM for the elestomer and quad ring , Our Material Code: F800  Combination Code: F8TF

If the working condition is under low temperature, we suggest to use low temperature resistance Nitrile Rubber (NBR) for the elestomer and quad ring , Our Material Code: NV705, Combination Code: NV7TN

Technical Data
Working Pressure: ≤40MPa
Speed: ≤3m/s
Working Temperature：-45℃ to +200℃ (Refer to the material of O Ring and Quad Ring)
Working Medium: All ordinary hydraulic oils, including bio oil and gas.
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed. During the installation, need to avoid the twist of the O ring.

Example of the Order Part No. :
KAQ Piston Seal
Series No.: KAQ   Piston Rod Diameter: d=100mm
Part Number: KAQ100087N8TP
KAQ: Series Number
100: Cylinder Bore Diameter
087: Groove Diameter
N8TP: Material Code

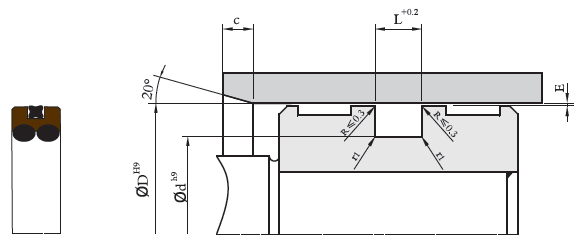

Installation size

No.	O Ring CS  （mm）	Recommended Standard  Cylinder Bore Diameter Range    D(mm)		Groove Diameter  D(mm)	Groove Width  L(mm)	Chamfer radius r	Maximum Clearance   E
		≥	≤				10MPa	20MPa	30MPa
1	2.65	40	75	D-10	6.3	0.6	0.30	0.20	0.15
2	3.55	80	130	D-13	8.3	1	0.40	0.30	0.15
3	5.3	135	450	D-18	12.3	1.3	0.40	0.30	0.20
4	7	480	700	D-31	16.3	1.8	0.50	0.40	0.30

 When the pressure is more than 40MPa, it is recommended to reduce the extrusion gap, or please contact with us for the best sealing solution.

KAQ Piston Seals
D	d	L	Part No.
40	30	6.3	KAQ040030
42	32	6.3	KAQ042032
45	35	6.3	KAQ045035
48	38	6.3	KAQ048038
50	40	6.3	KAQ050040
52	42	6.3	KAQ052042
55	45	6.3	KAQ055045
60	50	6.3	KAQ060050
63	53	6.3	KAQ063053
65	55	6.3	KAQ065055
70	60	6.3	KAQ070060
75	65	6.3	KAQ075065
80	67	8.3	KAQ080067
85	72	8.3	KAQ085072
90	77	8.3	KAQ090077
95	82	8.3	KAQ095082
100	87	8.3	KAQ100087
105	92	8.3	KAQ105092
110	97	8.3	KAQ110097
115	102	8.3	KAQ115102
120	107	8.3	KAQ120107
125	112	8.3	KAQ125112
130	117	8.3	KAQ130117
135	117	12.3	KAQ135117
140	122	12.3	KAQ140122
150	132	12.3	KAQ150132
160	142	12.3	KAQ160142
170	152	12.3	KAQ170152
180	162	12.3	KAQ180162
190	172	12.3	KAQ190172
200	182	12.3	KAQ200182
210	192	12.3	KAQ210192
220	202	12.3	KAQ220202
230	212	12.3	KAQ230212
240	222	12.3	KAQ240222
250	232	12.3	KAQ250232
280	262	12.3	KAQ280262
300	282	12.3	KAQ300282
320	302	12.3	KAQ320302
350	332	12.3	KAQ350332
400	382	12.3	KAQ400382
420	402	12.3	KAQ420402
450	432	12.3	KAQ450432
480	449	16.3	KAQ480449
500	469	16.3	KAQ500469
600	569	16.3	KAQ600569
700	669	16.3	KAQ700669
If any special requirements of the materials and sizes, please contact with us.
