KYX Piston Seals

Function and Usage
KYX Piston Seal is a single action compact type lip seal. When it is static, the sealing effect is played by the interference compression of the two sealing lips.When it is dynamic, the system pressure is applied at the valley of the Y type seal, which increased the contact stress of the seal lip, cylinder bottom and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. With a small section size, KYX Piston Seal is easy to install, and suitable for the installation of the piston with a shallow groove.

Advantage
--Good sealing effect, wear resistant
--Good ability to adapt the changes of the pressure
--Impact resistance, anti extrusion
-Simple design, and easy to install

Material
Material: polyurethane  Our Material Code: P902
Back UP Material Code: T600

If the working condition is under high pressure, we suggest to use POM for the back up, Our Material Code: S805

Technical Data
Working Pressure: ≤40MPa
Speed: ≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Hydraulic oil

Clearance

Working Pressure /MPa		5	10	20	30	40
Maximum Clearance       E	d＜60mm	0.40	0.30	0.20	0.15	0.10
	d≥60mm	0.50	0.40	0.30	0.20	0.15


Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
KYX Piston Seal
Series No.: KYX   Cylinder Bore Diameter: d=100mm
Part Number: KYX100088P902
KYX: Series Number
100: Cylinder Bore Diameter
088: Groove Diameter
P902: Material Code



KYX Piston Seals

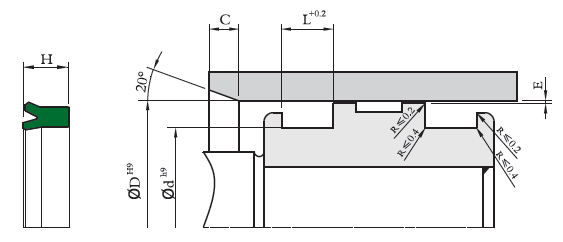

D	d	L	L1       (with back up)	H	C	Part No.	Back Up Part No.	Remarks
16	10	9	10.5	8	4	KYX016010	DF10*16*1.5	○
18	12	9	10.5	8	4	KYX018012	DF12*18*1.5	○
20	14	9	10.5	8	4	KYX020014	DF14*20*1.5	○
22	16	9	10.5	8	4	KYX022016	DF16*22*1.5	○
25	19	9	10.5	8	4	KYX025019	DF19*25*1.5	○
28	22	9	10.5	8	4	KYX028022	DF22*28*1.5	○
30	22	11	12.5	10	4	KYX030022	DF22*30*1.5	○
32	24	11	12.5	10	4	KYX030024	DF24*32*1.5	●
35	27	11	12.5	10	4	KYX035027	DF27*35*1.5	●
36	28	11	12.5	10	4	KYX036028	DF28*36*1.5	●
40	32	11	12.5	10	4	KYX040032	DF32*40*1.5	●
45	37	11	12.5	10	4	KYX045037	DF37*45*1.5	●
50	42	11	12.5	10	4	KYX050042	DF42*50*1.5	●
55	47	11	12.5	10	4	KYX055047	DF47*55*1.5	●
56	48	11	12.5	10	4	KYX056048	DF48*56*1.5	○
60	48	15	17	14	4	KYX060048	DF48*60*2	●
63	51	15	17	14	4	KYX063051	DF51*63*2	●
65	53	15	17	14	4	KYX065053	DF53*65*2	○
70	58	15	17	14	4	KYX070058	DF58*70*2	●
75	63	15	17	14	4	KYX075063	DF63*75*2	●
80	68	15	17	14	4	KYX080068	DF68*80*2	●
85	73	15	17	14	5	KYX085073	DF73*85*2	●
90	78	15	17	14	5	KYX090078	DF78*90*2	●
95	83	15	17	14	5	KYX095083	DF83*95*2	○
100	88	15	17	14	5	KYX100088	DF88*100*2	●
105	93	15	17	14	5	KYX105093	DF93*105*2	○
110	98	15	17	14	5	KYX110098	DF98*110*2	●
115	103	15	17	14	5	KYX115103	DF103*115*2	○
120	108	15	17	14	5	KYX120108	DF108*120*2	●
125	113	15	17	14	5	KYX125113	DF113*125*2	●
130	118	15	17	14	5	KYX130118	DF118*130*2	○
140	128	15	17	14	5	KYX140128	DF128*140*2	●
150	138	15	17	14	5	KYX150138	DF138*150*2	●
160	148	15	17	14	5	KYX160148	DF148*160*2	●
170	154	19	21.5	18	6	KYX170154	DF154*170*2.5	○
180	164	19	21.5	18	6	KYX180164	DF164*180*2.5	●
190	174	19	21.5	18	6	KYX190174	DF174*190*2.5	●
200	184	19	21.5	18	6	KYX200184	DF184*200*2.5	●
210	194	19	21.5	18	6	KYX210194	DF194*210*2.5	●
220	204	19	21.5	18	6	KYX220204	DF204*220*2.5	●
230	214	19	21.5	18	6	KYX230214	DF214*230*2.5	○
240	224	19	21.5	18	6	KYX240224	DF224*240*2.5	○
250	234	19	21.5	18	6	KYX250234	DF234*250*2.5	●
265	249	19	21.5	18	6	KYX265249	DF249*265*2.5	○
280	264	19	21.5	18	6	KYX280264	DF264*280*2.5	●
300	284	19	21.5	18	6	KYX300284	DF284*300*2.5	●
320	296	25.5	29	24	8	KYX320296	DF296*320*3.5	●
340	316	25.5	29	24	8	KYX340316	DF316*340*3.5	○
360	336	25.5	29	24	8	KYX360336	DF336*360*3.5	●
380	356	25.5	29	24	8	KYX380356	DF356*380*3.5	●
400	376	25.5	29	24	8	KYX400376	DF376*400*3.5	●
420	396	25.5	29	24	8	KYX420396	DF396*420*3.5	○
450	426	25.5	29	24	8	KYX450426	DF426*450*3.5	○
480	456	25.5	29	24	8	KYX480456	DF456*480*3.5	○
500	476	25.5	29	24	8	KYX500476	DF476*500*3.5	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
