KT Piston Seals

Function and Usage
KT Piston Seal is a two way combination seal which are consisted by two guide rings, one rubber elastomer and one Filled PTFE slip ring. The guide ring positioning and guidance; The rubber elastomer provides the preload, and also, compensate to the wear of the slip ring. The guide ring are designed with a Oblique opening, it is easy to install. The standard KT Piston Seal is mainly used in the high pressure and heavy load hydraulic cylinder, such as metallurgy, water and electricity, etc.

Advantage
--Good sealing effect
--Wear resistant, long service life
--Anti extrusion, compression deformation is small
--Low friction coefficient under both dynamic and static, without creeping

Material
Elestomer Material: Nitrile Rubber (NBR)   Our Material Code: N802
Slip Ring Material: Filled PTFE   Our Material Code: T605
Guide Ring Material: Filled POM  Our Material Code: S802
Combination Code: N8TS

If the working condition is under low temperature, we suggest to use low temperature resistance Nitrile Rubber (NBR) for the elestomer , Our Material Code: NV705, Combination Code: NVTS

If the working condition is under high temperature, we suggest to use FKM for the elestomer , Our Material Code: F800, for the guide ring we suggest to use filled PTFE, Our Material Code: T605

Technical Data
Working Pressure: ≤50MPa
Speed: ≤1m/s
Working Temperature：-35℃ to +200℃
Working Medium: Mineral hydraulic oil
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove:Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.
Installation sequence: Elestomer--Sealing Body--Guide Ring, should to ensure that the guide ring and back up’s opening configuration position are staggered. The special design of the concave guide ring requires a high tolerance of the mating surface of the components.

Example of the Order Part No. :
KT Piston Seal
Series No.: KT   Cylinder Bore Diameter: d=100mm
Part Number: KT100082N8TS
KT: Series Number
100: Cylinder Bore Diameter
082: Groove Diameter
N8TS: Material Code

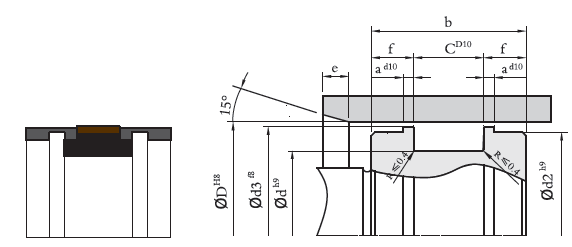

KT Piston Seals
D	d	b	d2	d3	a	c	f	e	Part No.	Remarks
40	26	30	32	36	3.5	15.5	7.25	7	KT040026	●
45	31	30	37	41	3	15.5	7.25	7	KT045031	●
50	34	32	42	46	3	20.5	5.8	7	KT050034	●
55	39	32	47	51	3	20.5	5.8	7	KT055039	○
56	40	32	48	52	3	20.5	5.8	7	KT056040	●
60	44	32	52	56	3	20.5	5.8	7	KT060044	○
63	47	32	55	59	3	20.5	5.8	7	KT063047	○
65	49	32	57	61	3	20.5	5.8	7	KT065049	○
70	54	32	62	66	3	20.5	5.8	7	KT070054	○
75	59	32	67	71	3	20.5	5.8	7	KT075059	○
80	62	36	72	76	3	22.5	6.8	7	KT080062	●
85	67	36	77	81	3	22.5	6.8	7	KT085067	○
90	72	36	82	86	3	22.5	6.8	7	KT090072	○
95	77	36	87	91	3	22.5	6.8	7	KT095077	○
100	82	36	92	96	3	22.5	6.8	7	KT100082	●
105	87	36	97	101	3	22.5	6.8	10	KT105087	○
110	92	36	102	106	3	22.5	6.8	10	KT110092	○
115	97	36	107	111	3	22.5	6.8	10	KT115097	○
120	102	36	112	116	3	22.5	6.8	10	KT120102	○
125	103	43	115	121	4	26.5	8.3	10	KT125103	●
130	108	43	120	126	4	26.5	8.3	10	KT130108	○
135	113	43	125	131	4	26.5	8.3	10	KT135113	○
140	118	43	130	136	4	26.5	8.3	10	KT140118	●
145	123	43	135	141	4	26.5	8.3	10	KT145123	○
150	128	43	140	146	4	26.5	8.3	10	KT150128	○
155	133	143	145	151	4	26.5	8.3	10	KT155133	○
160	138	43	150	156	4	26.5	8.3	10	KT160138	●
170	148	48	160	166	6	26.5	10.8	10	KT170148	○
180	158	48	170	176	6	26.5	10.8	10	KT180158	○
190	165	48	180	186	4.5	31.5	8.3	10	KT190165	●
195	170	48	185	191	4.5	31.5	8.3	10	KT195170	○
200	175	48	190	196	4.5	31.5	8.3	10	KT200175	○
210	185	58	200	206	8	31.5	13.3	12	KT210185	○
220	195	58	210	216	8	31.5	13.3	12	KT220195	○
235	210	74	225	231	15	31.5	21.3	12	KT235210	○
240	215	74	230	236	15	31.5	21.3	12	KT240215	○
250	225	74	240	246	15	31.5	21.3	12	KT250225	●
265	240	74	255	261	15	31.5	21.3	12	KT265240	○
280	255	74	270	276	15	31.5	21.3	12	KT280255	●
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
