GS Rod Seals

Function and Usage
GS Rod Seal is a combination seal which are combined by a PTFE Slip Ring and an O Ring elastomer. AS an elastomer the O Ring can provide sufficient sealing preload, and also, provide the compensation effect of the PTFE Slip Ring wearing. The advantage of the PTFE material is low friction coefficient and excellent wear resistance, the special geometrical design of the PTFE Slip Ring makes the wiper good at anti extrusion. At the same time, the residual oil film on the piston rod has the function of "pumping back". Can effectively restrain the "trapped pressure" phenomenon in the series seal configuration. GS Rod Seal is especially suitable for the hydraulic cylinder of the construction machinery, control cylinder, servo system, machine tool, quick response cylinder, and etc.

Advantage
--Both of the static and dynamic sealing effect are perfect
--Superior resistance to extrusion
--Low friction of both start and movement
--Start without creeping and sticking
--Wear resistance, high reliability
--Widely used in various media, high temperature resistance
--Simple design, and easy to install

Material
Standard usage
Sealing Body Material: Filled PTFE  Our Material Code: T605
O Ring Material: Nitrile Rubber (NBR)   Our Material Code: T605
Combination Code: T605N

If the working condition is under high temperature or chemical resistant medium, we suggest to use FKM (Fluoro Rubber) O Ring, Our Material Code: F800, Combination Code: T605F.

If the working condition is under low temperature, we suggest to use low temperature resistant rubber, Our Material Code: NV705, Combination Code: T605NV.

Technical Data
The Standard GS Rod Seal is suitable for the hydraulic cylinders of the construction machinery, machine tool, injection machine, pressing machine, and etc.
Working Pressure: 40MPa
Speed：≤5m/s
Working Temperature：-40℃ to +200℃ (Refer to the material of the o ring)
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit small diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed. During the installation, need to avoid the twist of the O ring.

Example of the Order Part No. :
GS Rod Seal
Series No.: GS    Piston Rod Diameter: d=100mm
Part Number: GS10006T605N
GS: Series Number
100: Piston Rod Diameter
06: Groove Diameter
T605N: Material Code

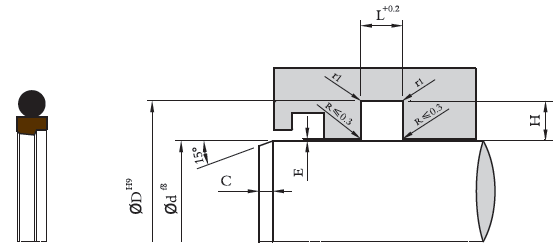

Installation size
Serial number	O Ring CS  （mm）	Recommended standard range   d(mm)		Groove Width  L(mm)	Groove Depth   H(mm)	Maximum Clearance E		r1
		≥	≤			＜20MPa	20-40MPa
GS	2.65	15	25	3.2	3.65	0.20	0.15	0.5
	3.55	20	63	4.2	5.35	0.25	0.2	0.5
	5.3	38	195	6.3	7.55	0.3	0.25	0.9
	7	200	250	8.1	10.25	0.35	0.3	0.9
	7	260	630	8.1	12	0.4	0.35	0.9
	8.6	650	900	9.5	13.65	0.6	0.5	1

When the pressure is more than 40MPa, it is recommended to reduce the extrusion gap, or please contact with us for the best sealing solution.

GS Rod Seals
d	D	L	H	C	O Ring Cross Section	Part No.	Remarks
15	22.3	3.2	3.65	3	2.65	GS01503T605N	●
16	22.3	3.2	3.65	3	2.65	GS01603T605N	●
18	25.3	3.2	3.65	3	2.65	GS01803T605N	●
20	27.3	3.2	3.65	3	2.65	GS02003T605N	●
20	30.7	4.2	5.35	6	3.55	GS02004T605N	●
22	32.7	4.2	5.35	6	3.55	GS02204T605N	●
24	34.7	4.2	5.35	6	3.55	GS02404T605N	●
25	32.3	3.2	3.65	3	2.65	GS02503T605N	●
25	35.7	4.2	5.35	6	3.55	GS02504T605N	●
26	36.7	4.2	5.35	6	3.55	GS02604T605N	●
28	38.7	4.2	5.35	6	3.55	GS02804T605N	●
30	40.7	4.2	5.35	6	3.55	GS03004T605N	●
32	42.7	4.2	5.35	6	3.55	GS03204T605N	●
35	45.7	4.2	5.35	6	3.55	GS03504T605N	●
36	46.7	4.2	5.35	6	3.55	GS03604T605N	●
38	48.7	4.2	5.35	6	3.55	GS03804T605N	●
38	53.1	6.3	7.55	8	5.3	GS03806T605N	●
40	50.7	4.2	5.35	6	3.55	GS04004T605N	●
40	55.1	6.3	7.55	8	5.3	GS04006T605N	●
45	55.7	4.2	5.35	6	3.55	GS04504T605N	●
45	60.1	6.3	7.55	8	5.3	GS04506T605N	●
48	63.1	6.3	7.55	8	5.3	GS04806T605N	●
50	60.7	4.2	5.35	6	3.55	GS05004T605N	●
50	65.1	6.3	7.55	8	5.3	GS05006T605N	●
55	65.7	4.2	5.35	6	3.55	GS05504T605N	●
55	70.1	6.3	7.55	8	5.3	GS05506T605N	●
56	66.7	4.2	5.35	6	3.55	GS05604T605N	●
56	71.1	6.3	7.55	8	5.3	GS05606T605N	●
58	73.1	6.3	7.55	8	5.3	GS05806T605N	●
60	70.7	4.2	5.35	6	3.55	GS06004T605N	●
60	75.1	6.3	7.55	8	5.3	GS06006T605N	●
63	73.7	4.2	5.35	6	3.55	GS06304T605N	●
63	78.1	6.3	7.55	8	5.3	GS06306T605N	●
65	80.1	6.3	7.55	8	5.3	GS06506T605N	●
70	85.1	6.3	7.55	8	5.3	GS07006T605N	●
75	90.1	6.3	7.55	8	5.3	GS07506T605N	●
80	95.1	6.3	7.55	8	5.3	GS08006T605N	●
85	100.1	6.3	7.55	8	5.3	GS08506T605N	●
90	105.1	6.3	7.55	8	5.3	GS09006T605N	●
95	110.1	6.3	7.55	8	5.3	GS09506T605N	●
100	115.1	6.3	7.55	8	5.3	GS10006T605N	●
110	125.1	6.3	7.55	8	5.3	GS11006T605N	●
120	135.1	6.3	7.55	8	5.3	GS12006T605N	●
125	140.1	6.3	7.55	8	5.3	GS12506T605N	●
130	145.1	6.3	7.55	8	5.3	GS13006T605N	●
140	155.1	6.3	7.55	8	5.3	GS14006T605N	●
150	165.1	6.3	7.55	8	5.3	GS15006T605N	●
155	170.1	6.3	7.55	8	5.3	GS15506T605N	●
160	175.1	6.3	7.55	8	5.3	GS16006T605N	●
170	185.1	6.3	7.55	8	5.3	GS17006T605N	●
175	190.1	6.3	7.55	8	5.3	GS17506T605N	●
180	195.1	6.3	7.55	8	5.3	GS18006T605N	●
185	200.1	6.3	7.55	8	5.3	GS18506T605N	●
190	205.1	6.3	7.55	8	5.3	GS19006T605N	●
195	210.1	6.3	7.55	8	5.3	GS19506T605N	●
200	220.5	8.1	10.25	10	7	GS20008T605N	●
210	230.5	8.1	10.25	10	7	GS21008T605N	●
220	240.5	8.1	10.25	10	7	GS22008T605N	●
225	245.5	8.1	10.25	10	7	GS22508T605N	●
230	250.5	8.1	10.25	10	7	GS23008T605N	●
240	260.5	8.1	10.25	10	7	GS24008T605N	●
250	270.5	8.1	10.25	10	7	GS25008T605N	●
260	284	8.1	12	12	7	GS26008T605N	●
270	294	8.1	12	12	7	GS27008T605N	●
280	304	8.1	12	12	7	GS28008T605N	●
290	314	8.1	12	12	7	GS29008T605N	●
300	324	8.1	12	12	7	GS30008T605N	●
320	344	8.1	12	12	7	GS32008T605N	●
330	354	8.1	12	12	7	GS33008T605N	●
340	364	8.1	12	12	7	GS34008T605N	●
350	374	8.1	12	12	7	GS35008T605N	●
360	384	8.1	12	12	7	GS36008T605N	●
370	394	8.1	12	12	7	GS37008T605N	●
380	404	8.1	12	12	7	GS38008T605N	●
390	414	8.1	12	12	7	GS39008T605N	●
400	424	8.1	12	12	7	GS40008T605N	●
420	444	8.1	12	12	7	GS42008T605N	●
430	454	8.1	12	12	7	GS43008T605N	●
440	464	8.1	12	12	7	GS44008T605N	●
450	474	8.1	12	12	7	GS45008T605N	●
460	484	8.1	12	12	7	GS46008T605N	●
470	494	8.1	12	12	7	GS47008T605N	●
480	504	8.1	12	12	7	GS48008T605N	●
490	514	8.1	12	12	7	GS49008T605N	●
500	524	8.1	12	12	7	GS50008T605N	●
630	654	8.1	12	12	7	GS63008T605N	●
650	677.3	9.5	13.65	12	8.6	GS65009T605N	○
750	777.3	9.5	13.65	12	8.6	GS75009T605N	○
800	827.3	9.5	13.65	12	8.6	GS80009T605N	○
850	877.3	9.5	13.65	12	8.6	GS85009T605N	○
900	927.3	9.5	13.65	12	8.6	GS90009T605N	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; If any special requirements of the materials and sizes, please contact with us.
