GY Rod Seals

Function and Usage
GY Rod Seal is a lip seal which are designed with one main lip and one ancillary lip. When it is static, the sealing effect is played by the interference compression of the two sealing lips.When it is dynamic, the system pressure is applied at the valley of the Y type seal, which increased the contact stress of the seal lip, piston rod and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. A little of oil slick is arranged between the main and the ancillary lip, which effectively prevents the dry friction and the premature wear of the seal. GY Rod Seal is mainly used in heavy load running machinery, the piston rod and plunger which are under static pressure, and so on..

Advantage
--Good sealing effect, wear resistance
--Good ability to adapt the changes of the pressure
--Impact resistance, suitable for harsh conditions
--Simple design, and easy to install
--Standard components for standard mounting grooves

Material
Standard usage
Material: polyurethane  Our Material Code: P902

If the working condition is under low temperature, we suggest to use low temperature resistant polyurethane, Our Material Code: PV902

Technical Data
Working Pressure: ≤40MPa
Speed：≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water

Clearance

Working Pressure /MPa		5	10	20	30	40
Maximum Clearance E	d＜60mm	0.40	0.30	0.20	0.15	0.10
	d≥60mm	0.50	0.40	0.30	0.20	0.15


Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
GY Rod Seal
Series No.: GY    Piston Rod Diameter: d=100mm
Part Number: GY100115P902
GY: Series Number
100: Piston Rod Diameter
115: Groove Diameter
P902: Material Code


GY Rod Seals

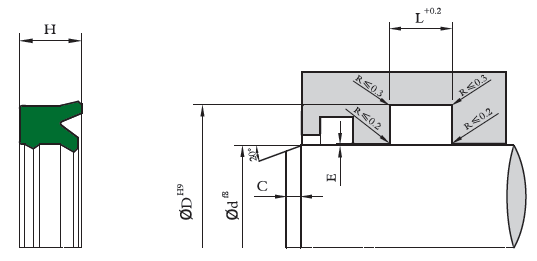

d	D	L	H	C	Part No.	Remarks
*8	14	6.3	5.7	4.5	GY008014	●
*14	22	6.3	5.7	4.5	GY014022	●
*18	28	8	7.3	4.5	GY018028	●
*20	28	6.3	5.7	4.5	GY020028	●
*20	30	8	7.3	4.5	GY020030	●
*22	30	6.3	5.7	4.5	GY022030	●
*22	32	8	7.3	4.5	GY022032	●
*25	33	6.3	5.7	4.5	GY025033A	●
*25	33	7.3	6.5	4.5	GY025033B	●
*25	35	8	7.3	4.5	GY025035	●
*28	36	6.3	5.7	4.5	GY028036	●
*28	38	8	7.3	4.5	GY028038	●
*30	38	6.3	5.7	4.5	GY030038	●
*30	40	8	7.3	4.5	GY030040	●
32	42	8	7.3	4.5	GY032042	●
35	45	8	7.3	4.5	GY035045	●
36	46	8	7.3	4.5	GY036046	●
38	48	8	7.3	4.5	GY038048	●
40	50	8	7.3	4.5	GY040050	●
40	55	12.5	11.4	5.5	GY040055	●
45	53	6.3	5.7	4.5	GY045053	●
45	55	8	7.3	4.5	GY045055	●
45	60	12.5	11.4	5.5	GY045060	●
50	60	8	7.3	4.5	GY050060	●
50	65	12.5	11.4	5.5	GY050065	●
55	65	8	7.3	4.5	GY055065	●
55	70	12.5	11.4	5.5	GY055070	●
56	66	7.5	6.5	4.5	GY056066	●
56	71	12.5	11.4	5.5	GY056071	●
60	75	12.5	11.4	5.5	GY060075	●
63	78	12.5	11.4	5.5	GY063078	●
65	75	8	7.3	4.5	GY065075	●
65	80	12.5	11.4	5.5	GY065080	●
65	85	12.5	11.4	5.5	GY065085	●
70	80	8	7.3	4.5	GY070080	●
70	85	12.5	11.4	5.5	GY070085	●
75	85	8	7.3	4.5	GY075085	●
80	90	8	7.3	4.5	GY080090	●
80	95	12.5	11.4	5.5	GY080095	●
90	100	7.5	6.5	4.5	GY090100	●
90	105	12.5	11.4	5.5	GY090105	●
100	115	12.5	11.4	5.5	GY100115	●
100	120	16	14.5	6	GY100120	●
105	125	16	14.5	6	GY105125	●
110	125	10.6	9.6	5.5	GY110125	●
110	130	16	14.5	6	GY110130	●
120	135	16	14.5	6	GY120135	●
120	140	16	14.5	6	GY120140	●
125	145	16	14.5	6	GY125145	●
130	150	16	14.5	6	GY130150	●
135	150	16	14.5	6	GY135150	●
140	160	16	14.5	6	GY140160	●
145	165	16	14.5	6	GY145165	○
150	170	16	14.5	6	GY150170	●
160	180	16	14.5	6	GY160180	●
160	185	20	18.2	6.5	GY160185	●
170	195	20	18.2	6.5	GY170195	○
180	200	16	14.5	6	GY180200	●
180	205	20	18.2	6.5	GY180205	●
200	225	20	18.2	6.5	GY200225	●
220	250	25	22.7	8	GY220250	●
225	250	20	18.2	6.5	GY225250	○
230	250	16	14.5	6	GY230250	●
230	260	25	22.7	8	GY230260	●
240	260	16	14.5	6	GY240260	●
250	280	25	22.7	8	GY250280	○
270	300	25	22.7	8	GY270300	●
280	300	16	14.5	6	GY280300	●
280	310	25	22.7	8	GY280310	●
320	360	32	30	8	GY320360	○
360	400	32	30	8	GY360400	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. “*” we suggest to adopt split type groove. If any special requirements of the materials and sizes, please contact with us.
