GYT Rod Seals

Function and Usage
GYT Rod Seal is a lip seal which are designed with one main lip and one ancillary lip. When it is static, the sealing effect is played by the interference compression of the two sealing lips.When it is dynamic, the system pressure is applied at the valley of the Y type seal, which increased the contact stress of the seal lip, piston rod and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. A little of oil slick is arranged between the main and the ancillary lip, which effectively prevents the dry friction and the premature wear of the seal. GYT Rod Seal is mainly used in heavy load running machinery, the piston rod and plunger which are under static pressure, and so on..

Advantage
--Good sealing effect, wear resistance
--Good ability to adapt the changes of the pressure
--Impact resistance, suitable for harsh conditions
--Simple design, and easy to install
--Standard components for standard mounting grooves

Material
Standard usage
Material: polyurethane  Our Material Code: P902

Technical Data
Working Pressure: ≤40MPa
Speed：≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water

Clearance

Working Pressure /MPa		5	10	20	30	40
Maximum Clearance E	d＜60mm	0.40	0.30	0.20	0.15	0.10
	d≥60mm	0.50	0.40	0.30	0.20	0.15


Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
GYT Rod Seal
Series No.: GYT    Piston Rod Diameter: d=100mm
Part Number: GYT100120P902
GYT: Series Number
100: Piston Rod Diameter
120: Groove Diameter
P902: Material Code


GYT Rod Seals

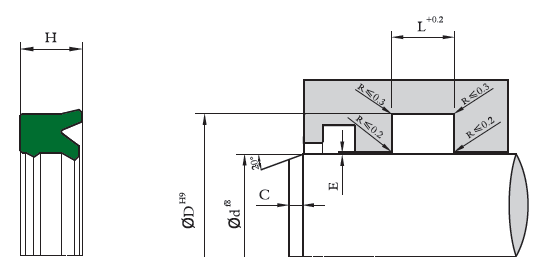

d	D	L	H	C	Part No.	Remarks
*15	25	7	6	4.5	GYT015025	○
*20	30	7	6	4.5	GYT020030	○
*22	30	7	6	4.5	GYT022030	●
*25	35	7	6	4.5	GYT025035	●
*30	40	11	10	4.5	GYT030040	●
32	42	7	6	4.5	GYT032042	●
35	50	10	9	4.5	GYT035050	●
35	43	8	7	4.5	GYT035043	●
40	50	11	10	4.5	GYT040050	●
40	55	10	9	4.5	GYT040055	○
45	55	11	10	4.5	GYT045055	●
45	56	8	7	4.5	GYT045056	●
45	60	10	9	4.5	GYT045060	●
50	60	11	10	4.5	GYT050060	●
55	65	11	10	4.5	GYT055065	●
55	67	11	10	4.5	GYT055067	●
55	70	10	11	4.5	GYT055070	●
60	70	9	8	4.5	GYT060070A	●
60	70	11	10	4.5	GYT060070B	●
63	73	11	10	4.5	GYT063073A	●
63	73	13	12	5.5	GYT063073B	●
65	80	10	9	4.5	GYT065080	●
70	80	11	10	4.5	GYT070080A	●
70	80	13	12	5.5	GYT070080B	●
75	90	13	12	5.5	GYT075090A	●
75	90	11	10	4.5	GYT075090B	●
80	90	13	12	5.5	GYT080090	●
80	95	10	9	4.5	GYT080095	●
85	100	13	12	5.5	GYT085100	●
90	102	10	9	4.5	GYT090102	●
95	115	13	12	5.5	GYT095115	●
100	120	13	12	5.5	GYT100120	●
105	120	11	10	5.5	GYT105120	●
105	125	13	12	5.5	GYT105125	○
110	130	13	12	5.5	GYT110130	●
120	140	13	12	5.5	GYT120140	●
130	150	13	12	5.5	GYT130150	●
140	160	13	12	5.5	GYT140160	○
160	185	17	16	6.5	GYT160185	○
180	205	17	16	6.5	GYT180205	○
200	225	17	16	6.5	GYT200225	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. “*” we suggest to adopt split type groove. If any special requirements of the materials and sizes, please contact with us.
